200mA,低静态电流,超低噪声,高PSRR低压降线性稳压器 200mA, Low Quiescent Current, Ultra-Low Noise, High PSRR Low Dropout Linear Regulator
Use this LDO linear regulator from Texas Instruments to vary your voltage levels to your desired level. It has an overall accuracy of ±1 %. Its typical dropout voltage at current is 0.09@200mA V. This voltage regulation device"s single output can produce a current up to 0.2 A. This will operate at a minimum voltage of 2.7 V and a maximum voltage of 6.5 V, making it easy to control the power in your circuit. With a fixed output that has a voltage of 3.3 V, this is power management at its best. A load regulation of 0.002%/mATyp and line regulation of 0.02%/VTyp is necessary for providing a constant voltage level at your output. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. Its polarity is positive. The maximum dropout voltage is 0.16@200mA V. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 85 °C.
输出接口数 1
输出电压 3.3 V
输出电流 200 mA
耗散功率 530 W
静态电流 40.0 µA
输出电容类型 Ceramic
跌落电压 0.09V @200mA
调节输出数 1
输入电压Max 6.5 V
输入电压Min 2.7 V
输出电压Min 3.3 V
输出电流Max 0.2 A
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 2 %
输入电压 ≤6.5 V
安装方式 Surface Mount

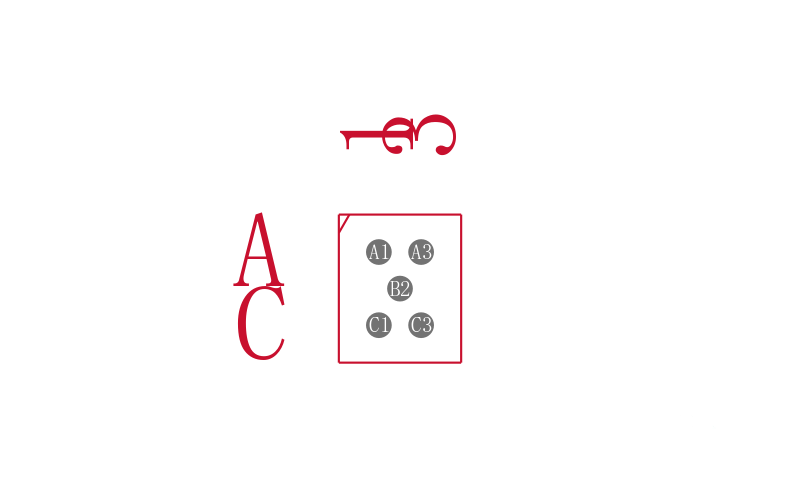

引脚数 5

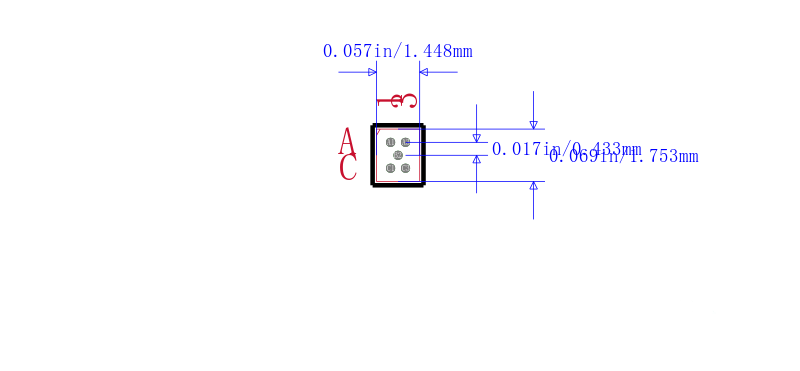

封装 DSBGA-5
封装 DSBGA-5
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS79933YZUR TI 德州仪器 | 当前型号 | 当前型号 |
TPS79933YZUT 德州仪器 | 完全替代 | TPS79933YZUR和TPS79933YZUT的区别 |
