汽车类 1.4W 单声道无滤波 D 类音频功率放大器 8-HVSSOP -40 to 105
The TPA2005D1-Q1 device is a 1.4-W high-efficiency filter-free class-D audio power amplifier in a SON or MSOP-PowerPAD package that requires only three external components.
Features like 84% efficiency, –71-dB PSRR at 217 Hz, improved RF-rectification immunity, and 15-mm2 total PCB area make TPA2005D1-Q1 ideal for low-power audio applications in infotainment and cluster.
The device allows for independent gain control by summing the signals from each function while minimizing noise to only 48 µVRMS. Additionally, the TPA2005D1-Q1 device offers fast start-up time of 9 ms with minimal pop and has short circuit and thermal protection.
通道数 1
耗散功率 2.13 W
静态电流 2.80 mA
输出功率 1.18 W
工作温度Max 105 ℃
工作温度Min -40 ℃
耗散功率Max 2130 mW
共模抑制比Min 49 dB
电源电压 2.5V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 2.5 V
安装方式 Surface Mount
引脚数 8

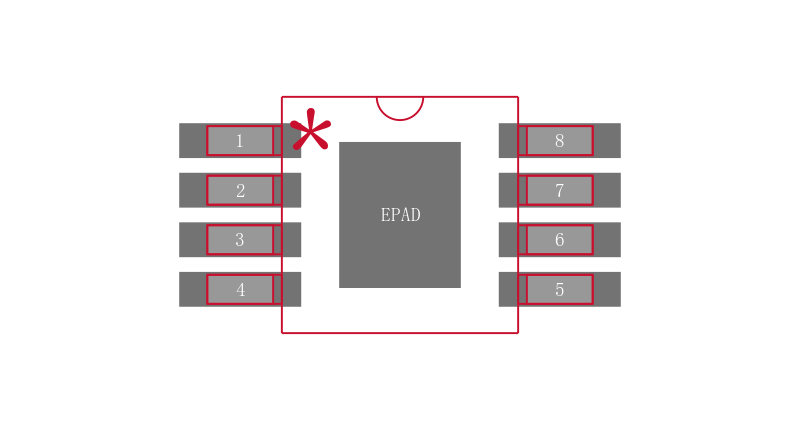

封装 PowerPad-MSOP-8
封装 PowerPad-MSOP-8
工作温度 -40℃ ~ 105℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPA2005D1TDGNRQ1 TI 德州仪器 | 当前型号 | 当前型号 |
TPA6205A1DGN 德州仪器 | 类似代替 | TPA2005D1TDGNRQ1和TPA6205A1DGN的区别 |
TPA6205A1DGNR 德州仪器 | 类似代替 | TPA2005D1TDGNRQ1和TPA6205A1DGNR的区别 |
TPA311DGN 德州仪器 | 类似代替 | TPA2005D1TDGNRQ1和TPA311DGN的区别 |
