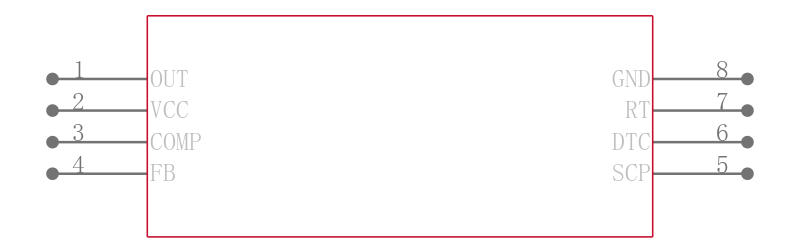

TL5001CD

TEXAS INSTRUMENTS  TL5001CD  控制器, PWM, 40V-3.6V电源, 500 kHz, 50V/20mA输出, SOIC-8

The is a PWM Controller with wide input range incorporate on a single monolithic chip all the functions required for a pulse-width-modulation PWM control circuit. Designed primarily for power-supply control, the TL5001/A contains an error amplifier, a regulator, an oscillator, a PWM comparator with a dead-time-control input, under-voltage lockout UVLO, short-circuit protection SCP and an open-collector output transistor. The TL5001A has a typical reference voltage tolerance of ±3% compared to ±5% for the TL5001.

.

Complete PWM power control

.

Internal under-voltage-lockout circuit

.

Internal short-circuit protection

.

Variable dead time provides control over total range

.

±3% Tolerance on reference voltage

.

Green product and no Sb/Br
