TDA7577BLV

TDA7577BLV图片1

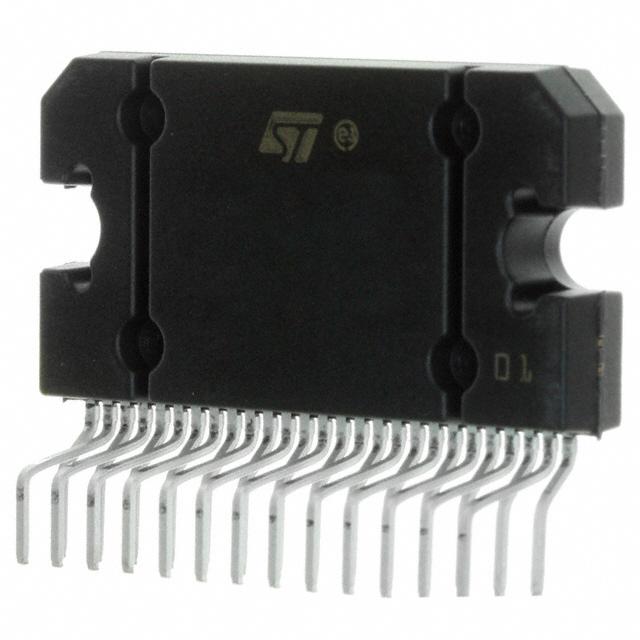

TDA7577BLV图片2
TDA7577BLV概述

音频放大器 Low voltage operation, high efficiency class SB, intelligent, dual BTL output power amplifier with full I2C diagnostics including tweeter detection and hardware stand-by/mute

放大器 IC 2 通道(立体声) AB 类 27 Flexiwatt(垂直)


得捷:
IC AMP AB STEREO 45W 27FLEXIWATT


贸泽:
音频放大器 Low voltage operation, high efficiency class SB, intelligent, dual BTL output power amplifier with full I2C diagnostics including tweeter detection and hardware stand-by/mute


艾睿:
Audio Amp Speaker 1-CH Mono/2-CH Stereo 85W Class-SB Automotive 27-Pin FLEXIWATTVertical Tube


安富利:
Audio Amp Speaker 1-CH Mono/2-CH Stereo 155W/75W Class-SB 27-Pin FlexiwattVertical Tube


Chip1Stop:
Audio Amp Speaker 1-CH Mono/2-CH Stereo 85W Class-SB Automotive 27-Pin FLEXIWATTVertical Tube


TDA7577BLV中文资料参数规格
技术参数

输出电流 6 A

耗散功率 86 W

输出功率 75 W

输出电流Max 8000 mA

工作温度Max 105 ℃

工作温度Min -40 ℃

耗散功率Max 86000 mW

共模抑制比Min 55 dB

电源电压 6V ~ 18V

封装参数

安装方式 Through Hole

引脚数 27

封装 Flexiwatt-27

外形尺寸

封装 Flexiwatt-27

物理参数

工作温度 -40℃ ~ 105℃ TA

其他

产品生命周期 Active

包装方式 Tube

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

数据手册

在线购买TDA7577BLV
型号: TDA7577BLV
描述:音频放大器 Low voltage operation, high efficiency class SB, intelligent, dual BTL output power amplifier with full I2C diagnostics including tweeter detection and hardware stand-by/mute
替代型号TDA7577BLV
型号/品牌 代替类型 替代型号对比

TDA7577BLV

ST Microelectronics 意法半导体

当前型号

当前型号

TDA7577BLVPDTR

意法半导体

功能相似

TDA7577BLV和TDA7577BLVPDTR的区别
