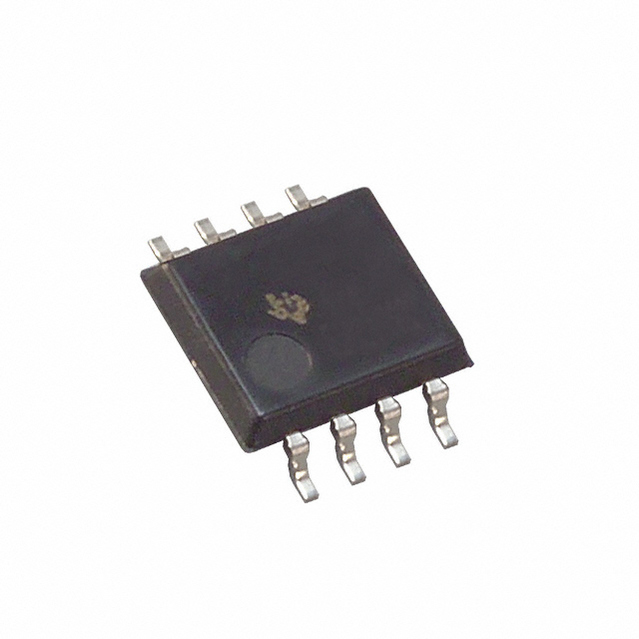

TL5001CPSRG4

脉宽调制控制电路 PULSE-WIDTH-MODULATION CONTROL CIRCUITS

description

The TL5001 and TL5001A incorporate on a single monolithic chip all the functions required for a

pulse-width-modulation PWM control circuit. Designed primarily for power-supply control, the TL5001/A contains an error amplifier, a regulator, an oscillator, a PWM comparator with a dead-time-control input, undervoltage lockout UVLO, short-circuit protection SCP, and an open-collector output transistor. The TL5001A has a typical reference voltage tolerance of ±3% compared to ±5% for the TL5001.

Complete PWM Power Control

3.6-V to 40-V Operation

Internal Undervoltage-Lockout Circuit

Internal Short-Circuit Protection

Oscillator Frequency. . . 20 kHz to 500 kHz

Variable Dead Time Provides Control Over Total Range

±3% Tolerance on Reference Voltage TL5001A

Available in Q-Temp Automotive

  HighRel Automotive Applications

  Configuration Control / Print Support

  Qualification to Automotive Standards
