TPS61261DRVT

Step-Up Boost DC/DC Converters Integrated Switch, Texas Instruments### 直流/直流开关调节器转换器（集成开关），Texas InstrumentsTexas Instruments 的此系列高度集成的高效开关稳压器包括步升（升压）、步降（降压）、步升/降（增压/降压）和反相类型，为每个直流稳压器应用提供高效的解决方案。

The TPS6126x devices provide a power supply solution for products powered by either single or dual cell alkaline, NiCd, or NiMH batteries. Its unique advanced softstart makes it also suitable for products powered by high output impedance battery types, like coin cells. Output currents can go as high as 100 mA while using a single cell alkaline battery, and discharge it down to 0.8 V or lower.

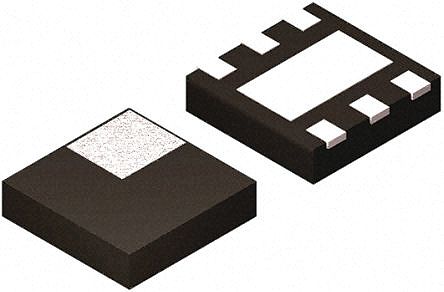

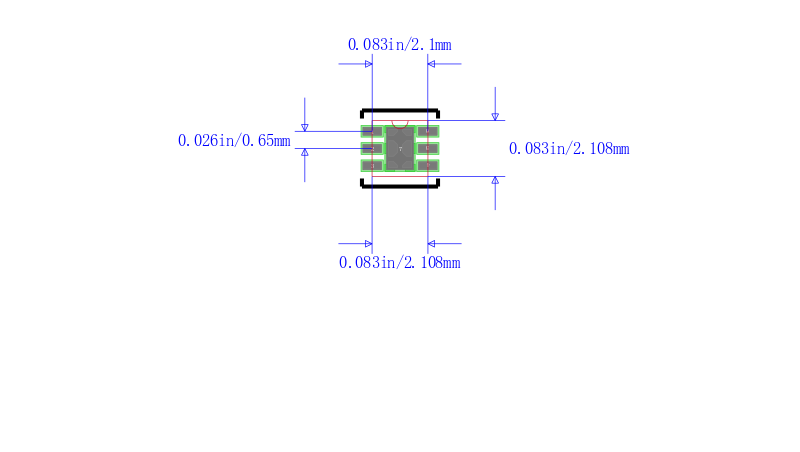

The boost converter is based on a quasi fixed frequency, pulse-width-modulation PWM controller using synchronous rectification to obtain maximum efficiency. At low load currents, the converter enters Power Save Mode to ensure high efficiency over a wide load current range. The maximum average current in the switches is limited to a programmable value which can go as high as 700 mA. The output voltage is programmable using an external resistor divider, or is fixed internally on the chip. In addition, the average output current can be programmed as well. The converter then regulates the programmed output voltage or the programmed output current, which ever demands lower output power. The converter can be disabled to minimize battery drain. During shutdown, the load is disconnected from the battery. The device is packaged in a 6-pin WSON DRV package.
