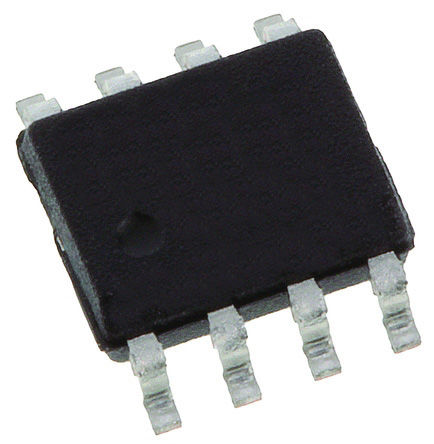

TEXAS INSTRUMENTS TPS76833QD 固定电压稳压器, LDO, 2.7V至10V, 350mV压差, 3.3V输出, 1A输出, SOIC-8
LDO(低压降)线性稳压器,1A,TPS系列,Texas Instruments
得捷:
IC REG LINEAR 3.3V 1A 8SOIC
立创商城:
TPS76833QD
欧时:
### LDO(低压降)线性稳压器,1A,TPS系列,Texas Instruments### LDO(低压降)线性稳压器,Texas Instruments低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。
德州仪器TI:
1-A, 10-V, low-dropout voltage regulator with power good & enable
贸泽:
LDO Voltage Regulators Micropower LDO Reg
e络盟:
TEXAS INSTRUMENTS TPS76833QD 固定电压稳压器, LDO, 2.7V至10V, 350mV压差, 3.3V输出, 1A输出, SOIC-8
艾睿:
Keep calm and stay stable by implementing this LDO TPS76833QD linear regulator developed by Texas Instruments. Its typical dropout voltage at current is 0.35@1A V. It has an overall accuracy of ±2 %. This device has a maximum power dissipation of 904.15 mW. This voltage regulation device&s;s single output can produce a current up to 1 A. With a small input voltage of 2.7 V and a max of 10 V, this will supply sufficient power to your circuit. With a fixed output that has a voltage of 3.3 V, this is power management at its best. Users like the load regulation of 3mVTyp and line regulation of 0.01%/VTyp. Its maximum power dissipation is 904.15 mW. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. Its polarity is positive. The maximum dropout voltage is 0.575@1A V. This voltage regulation device has an operating temperature range of -40 °C to 125 °C.
安富利:
LDO Regulator Pos 3.3V 1A 8-Pin SOIC Tube
Chip1Stop:
Single Channel LDO Single Output LDO, 1.0A, Fixed3.3V, Low Quiescent Current, Fast Transient Response LDO Regulator Pos 3.3V 1A 8-Pin SOIC Tube
Verical:
LDO Regulator Pos 3.3V 1A 8-Pin SOIC Tube
Newark:
# TEXAS INSTRUMENTS TPS76833QD Fixed LDO Voltage Regulator, 2.7V to 10V, 350mV Dropout, 3.3Vout, 1Aout, SOIC-8
力源芯城:
快速瞬态响应1A低压差3.3V线性稳压器
DeviceMart:
IC REG LDO 3.3V 1A 8-SOIC
Win Source:
Linear Voltage Regulator IC Positive Fixed 1 Output 3.3V 1A 8-SOIC
额定功率 0.90415 W
输出接口数 1
输入电压DC 10.0V max
输出电压 3.3 V
输出电流 1 A
针脚数 8
耗散功率 0.90415 W
静态电流 0.085 mA
输出电容类型 Tantalum
跌落电压 350 mV
调节输出数 1
输入电压Max 10 V
输入电压Min 2.7 V
输出电压Min 3.3 V
输出电流Max 1 A
工作温度Max 125 ℃
工作温度Min -40 ℃
耗散功率Max 904.15 mW
精度 ±2 %
电源电压Min 2.7 V
输入电压 ≤10 V
安装方式 Surface Mount
引脚数 8
封装 SOIC-8
长度 4.9 mm
宽度 3.91 mm
高度 1.58 mm
封装 SOIC-8
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
香港进出口证 NLR
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS76833QD TI 德州仪器 | 当前型号 | 当前型号 |
TPS76833QDRG4 德州仪器 | 类似代替 | TPS76833QD和TPS76833QDRG4的区别 |
TPS76833QDR 德州仪器 | 类似代替 | TPS76833QD和TPS76833QDR的区别 |
TPS76833QDG4 德州仪器 | 类似代替 | TPS76833QD和TPS76833QDG4的区别 |
