具有反向电流保护无电容NMOS 400毫安低压差稳压器 CAP-FREE NMOS 400 mA LOW-DROPOUT REGULATORS WITH REVERSE CURRENT PROTECTION
Never worry about components seeing unstable voltages again by implementing this LDO linear regulator manufactured by Texas Instruments. This device has a maximum power dissipation of 556 mW. Its typical dropout voltage at current is 0.075@400mA V. It has an overall accuracy of ±0.5 %. This voltage regulation device"s single output can produce a current up to 0.4 A. This will operate at a minimum voltage of 1.7 V and a maximum voltage of 5.5 V, making it easy to control the power in your circuit. With an adjustable output that has a voltage of 1.2 to 5.5 V, this is power management at its best. By operating at a load regulation of 0.002%/mATyp and line regulation of 0.01%/VTyp you can provide a constant voltage at your output. Its maximum power dissipation is 556 mW. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This voltage regulation device has an operating temperature range of -55 °C to 125 °C. The maximum dropout voltage is 0.2@400mA V. Its polarity is positive.
输出接口数 1
输出电压 1.2V ~ 5.5V
输出电流 400 mA
耗散功率 0.556 W
静态电流 400 µA
输出电容类型 Ceramic
跌落电压 0.075V @400mA
调节输出数 1
输入电压Max 5.5 V
输入电压Min 1.7 V
输出电压Max 5.5 V
输出电压Min 1.2 V
输出电流Max 0.4 A
工作温度Max 125 ℃
工作温度Min -55 ℃
耗散功率Max 556 mW
精度 ±0.5 %
输入电压 1.7V ~ 5.5V
安装方式 Surface Mount
引脚数 5

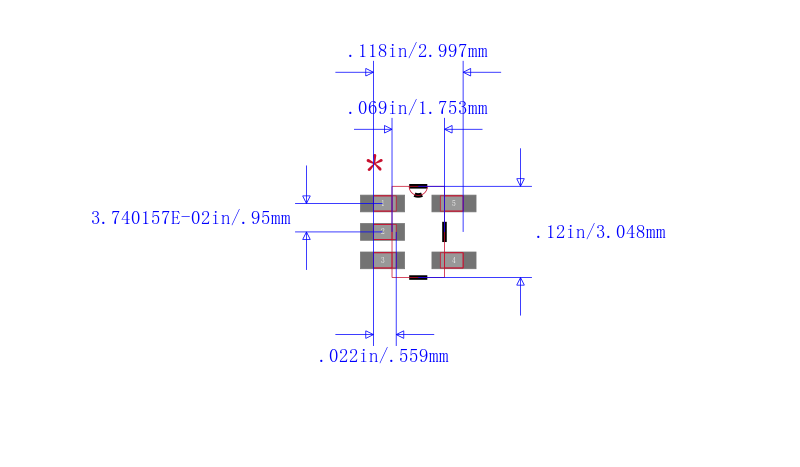

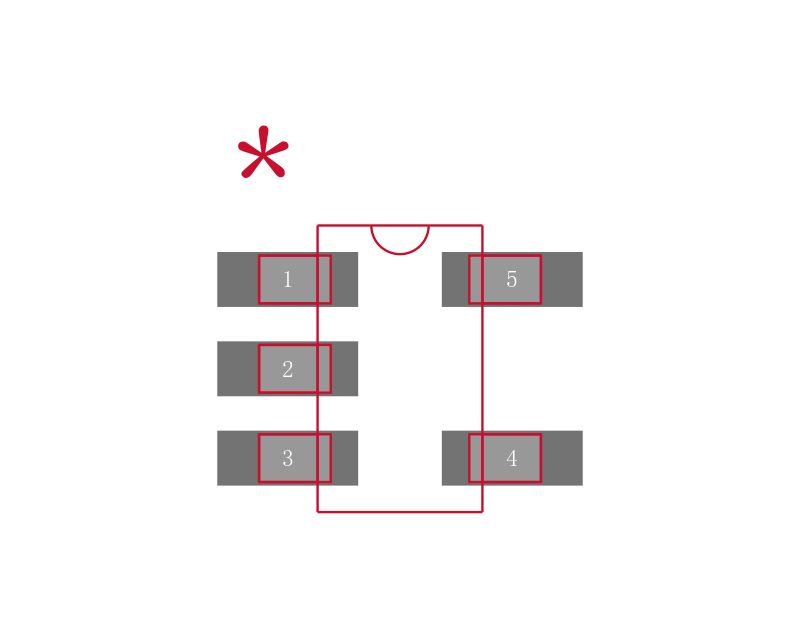

封装 SOT-23-5
封装 SOT-23-5
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS73601MDBVREP TI 德州仪器 | 当前型号 | 当前型号 |
V62/06626-01XE 德州仪器 | 类似代替 | TPS73601MDBVREP和V62/06626-01XE的区别 |
