LED; Yellow; 7.62mm Sq.; 70mA; 2.1V; +/-30deg; 594nm; GaAsP on GaP; 10V; 187mW

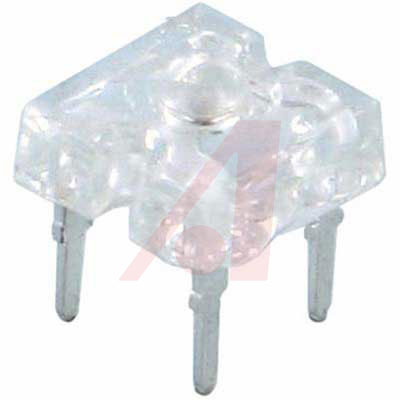

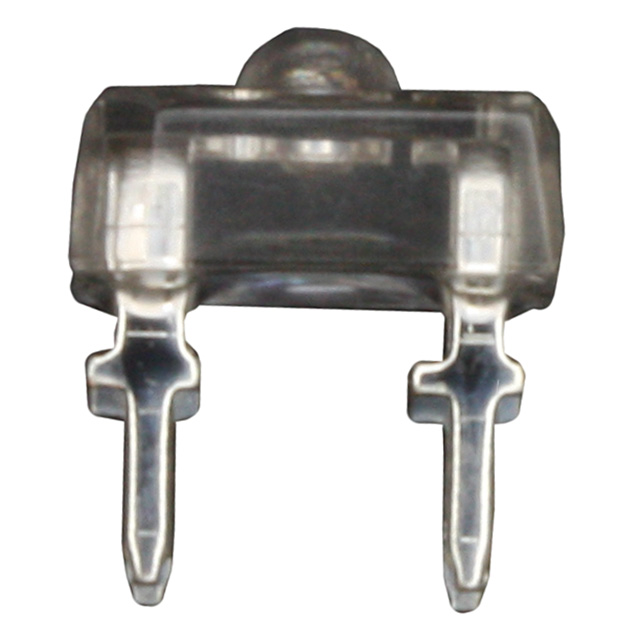

TELUX™ Lamp, Yellow Color, 187 mW Power Dissipation, 50 mA DC Max. Forward Current
* Utilizing one of the world"s brightest AS AllnGaP technologies
* High luminous flux
* 90 K/W supreme heat dissipation
* Packed in tubes for automatic insertion
* Luminous flux, forward voltage and color categorized for each tube
* Small mechanical tolerance
30 ° angle of half intensity, 1 A surge forward current, 125 °C junction temperature, 17 pF junction capacitance. 0.8 mcd/mlm luminous intensity/total flux.
额定电压DC 2.10 V
正向电压 2.1 V
波长 590 nm
发光强度 3000 mcd
视角 60°
峰值波长 594 nm
耗散功率 187 mW
测试电流 70 mA
正向电流 70 mA
正向电流Max 70 mA
工作温度Max 100 ℃
工作温度Min -40 ℃
耗散功率Max 187 mW
安装方式 Through Hole
引脚数 4
封装 DIP-4
高度 4.05 mm
脚长度 4.95 mm
封装 DIP-4
颜色 Yellow
工作温度 -40℃ ~ 110℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
