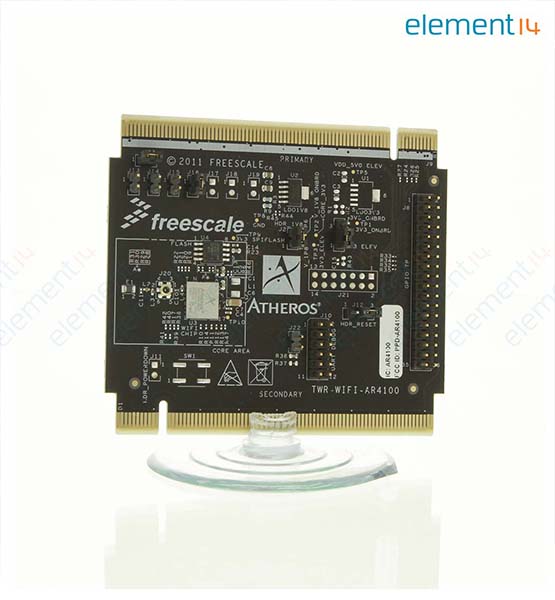

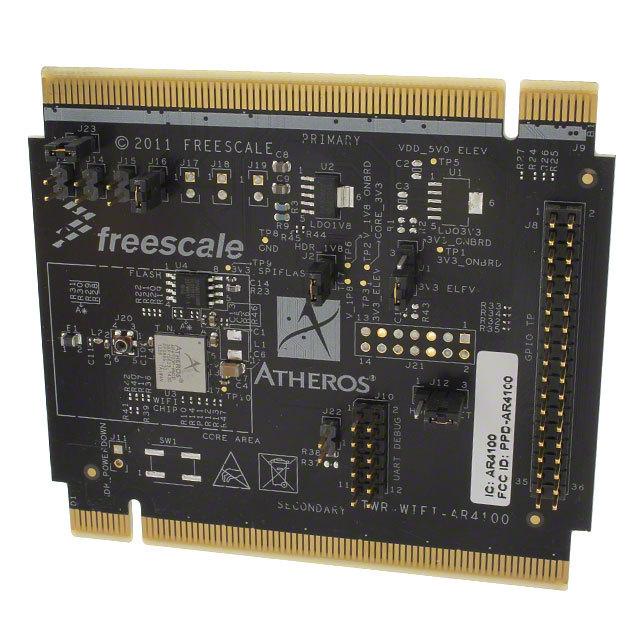

TWR-WIFI-AR4100

NXP  TWR-WIFI-AR4100  塔式系统, WIFI模块

The peripheral module enables the internet of things with 802.11n Wi-Fi connectivity using the tower system. This fully FCC & CE-certified Atheros system in package module comes with MQX software and enables you to quickly go from the lab to production with the same Wi-Fi hardware module. The on board Atheros silicon features easy to use wireless for the whole home and pre certification that will save you time and money getting your product to market. This peripheral module is designed to be combined and used with other MCU and peripheral modules in the tower system.

.

Ultra low power AR4100 802.11n Wi-Fi system in package solution from Qualcomm Atheros

.

Integrated RF front end, RF shield, 32kHz sleep clock, and system clock

.

Best in class Rx sensitivity for superior throughput rate over range performance

.

Integrated high power, high efficiency linearized power amplifier

.

Low density parity check LDPC encoding for improved uplink robustness over range

.

Space time code blocking STBC for improved downlink robustness over range

.

Wi-Fi protected setup WPS

.

Compatible with the tower system, including MQX based driver support

.

SPI interface to tower MCU modules

.

On board SPI flash for enabling minimal impact to MCU resources
