TDGL021

MICROCHIP  TDGL021  开发板, PIC32MX695F512L, 无线

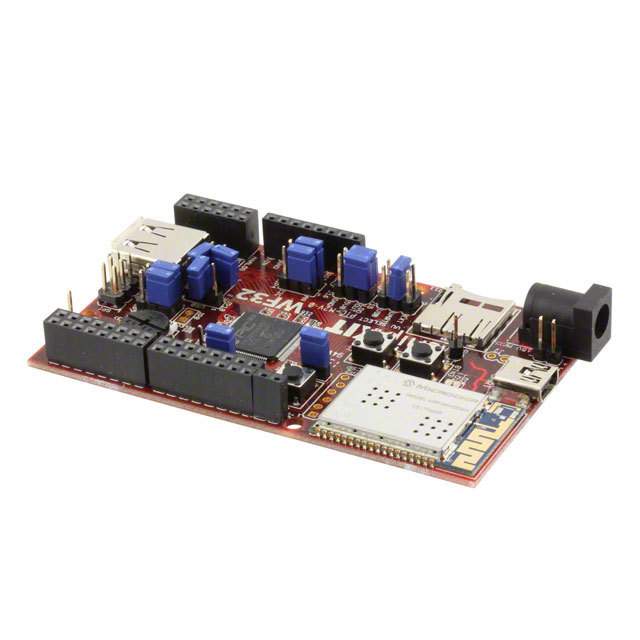

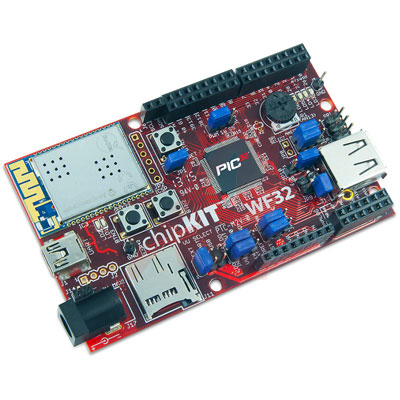

The is a chipKIT™ WF32™ WiFi Development Board an easy-to-use platform for developing Wi-Fi® applications. As with other chipKIT boards, it uses a modified version of the original Arduino® IDE for compatibility with existing code examples, tutorials and resources. Also compatible with MPLAB® X IDE. The WF32 includes several peripherals on board, including Wi-Fi radio module, USB OTG host or device interface, microSD™ card slot, buttons, LEDs, potentiometer and lots of extra I/O. A full-featured HTML server application is available by download. Can be powered by USB or an external power supply.

.

PIC32MX695F512L processor with 512kB flash, 32kB RAM up to 80MHz operating speed

.

MRF24WG0MA Wi-Fi module

.

microSD card connector

.

USB 2.0 OTG interface

.

Four user LEDs, two buttons

.

42 Available I/O lines
