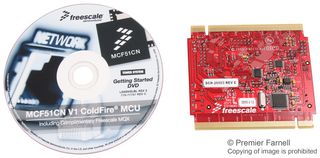

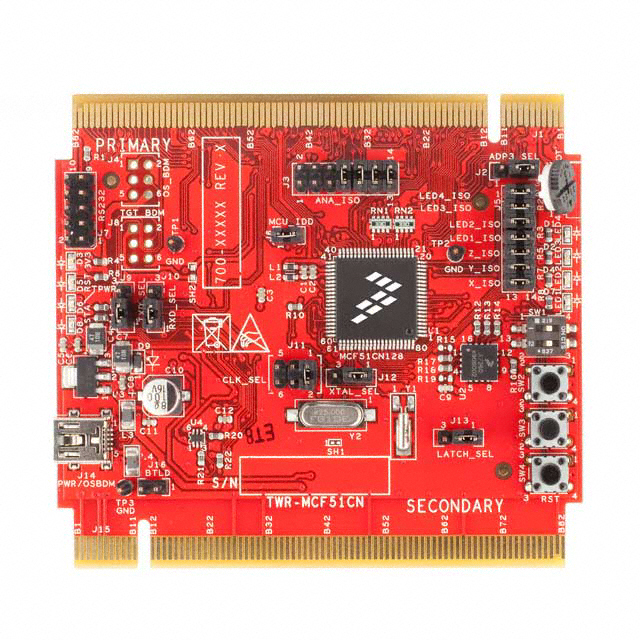

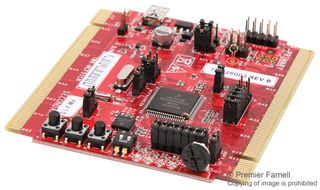

TWR-MCF51CN

The TWR-MCF51CN tower 系统模块是一个开发电路板 用于the MCF51CN128 V1 ColdFire以太网 32位MCUs. It 设计to enable the addition of以太网 connectivity to industrial和commercial应用, while providing 用于minimized power consumption和increased 功能ality in 低功率modes. The tower 系统模块 operates as a standalone debug工具和can also be combined和used as part of the 模块 tower 系统开发平台.

The tower 系统模块是一个开发电路板 用于the MCF51CN128 V1 ColdFire以太网 32位MCUs. It 设计to enable the addition of以太网 connectivity to industrial和commercial应用, while providing 用于minimized power consumption和increased 功能ality in 低功率modes. The tower 系统模块 operates as a standalone debug工具和can also be combined和used as part of the 模块 tower 系统开发平台.

.

塔式兼容微控制器模块

.

MCF51CN128, 80 LQFP封装

.

基于MC9S08JM60的开源调试器OSBDM电路

.

四个用户控制LED

.

两个DIP开关和三个用户输入按钮

.

高速以太网控制器FEC

.

MMA7260三轴加速度计

.

RS232 收发器和2x5引脚针座

.

通过初级电梯连接器进行扩展
