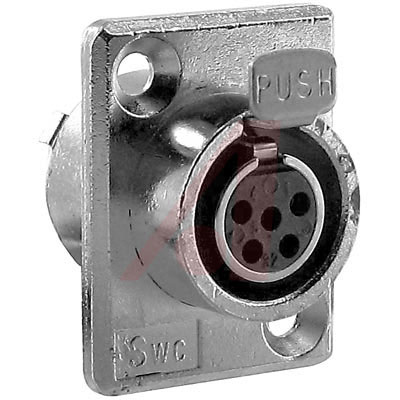

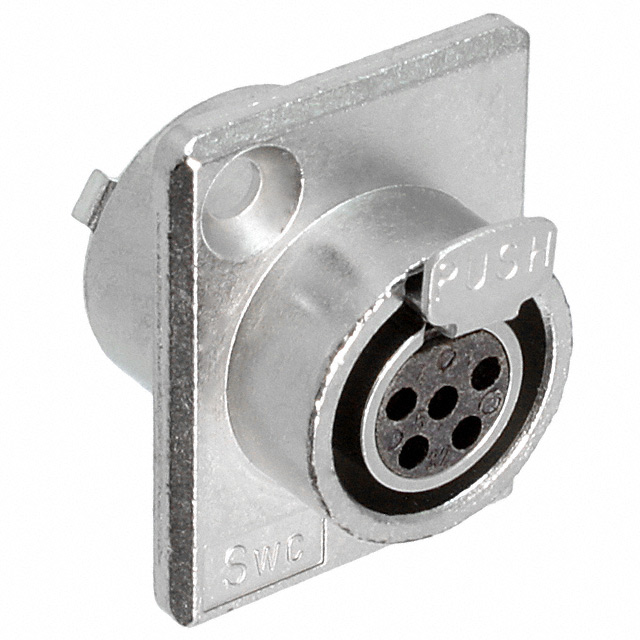

SWITCHCRAFT TY5F 音频连接器, XLR, 迷你XLR, 插座, 5 触点, 面板安装, 金属主体, 镀银触芯, TY Series Tini Q-G
5 针位圆形 插头,母插口 焊杯
欧时:
Switchcraft TY系列 5路 直向 面板安装 插座, 4A
得捷:
CONN PLUG FMALE MINI XLR 5P SLDR
e络盟:
XLR连接器, 迷你XLR, 5 触点, 插座, 面板安装, 镀银触芯, 金属主体, TY Series Tini Q-G
艾睿:
Make your product&s;s components work properly with the xlr connector TY5F audio and video connector from Switchcraft. This F connector&s;s 5 contacts that are made out of copper alloy and plated with silver. This connector has a single port. It has a maximum voltage rating of 125 VAC. It has a female type gender. It has a straight body orientation. This device has a maximum current rating of 5 A. TY5F is housed in copper alloy. This part has a minimum operating temperature of -55 °C and a maximum of 85 °C. Its 5 terminals use the solder termination method. This product is 18.79 mm long, 24.38 mm tall and 23.69 mm deep.
Allied Electronics:
DIN Plug; Receptacle; 5; Female; 125; 5A; 0.010 Ohms Max.; Copper Alloy
Verical:
Conn XLR Connector F 5 POS Solder ST Panel Mount 5 Terminal 1 Port
Newark:
# SWITCHCRAFT TY5F XLR Audio Connector, Socket, 5, Panel Mount, Metal Body, Silver Plated Contacts
MASTER:
Conn XLR Connector F 5 POS Solder ST Panel Mount 5 Terminal 1 Port
Online Components:
Conn XLR Connector F 5 POS Solder ST Panel Mount 5 Terminal 1 Port
Electro Sonic:
Conn XLR Connector F 5 POS Solder ST Panel Mount 5 Terminal 1 Port
触点数 5
极性 Female
触点电镀 Silver
额定电压AC 125 V
额定电流 4 A
针脚数 5
接触电阻 10.0 mΩ
额定电流Max 5 A
工作温度Max 85 ℃
工作温度Min -55 ℃
额定电压Max 125 VAC
额定电压 125 VAC
安装方式 Solder, Panel
高度 24.38 mm
颜色 Black
触点材质 Copper Alloy
绝缘材质 Thermoplastic
工作温度 -55℃ ~ 85℃
产品生命周期 Active
包装方式 Bulk
制造应用 Audio, 音频
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
