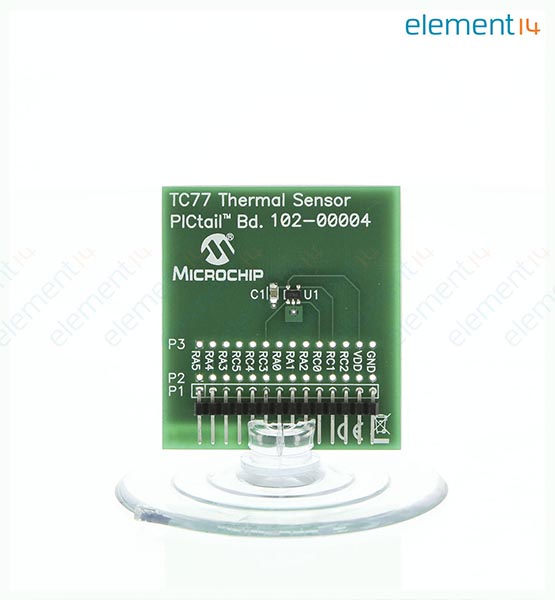

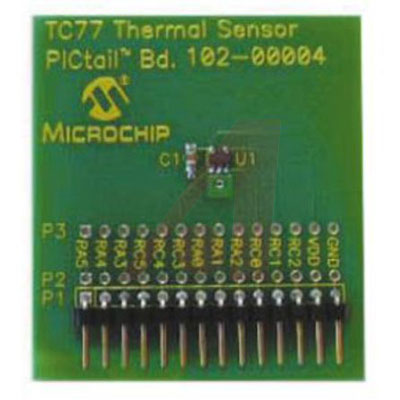

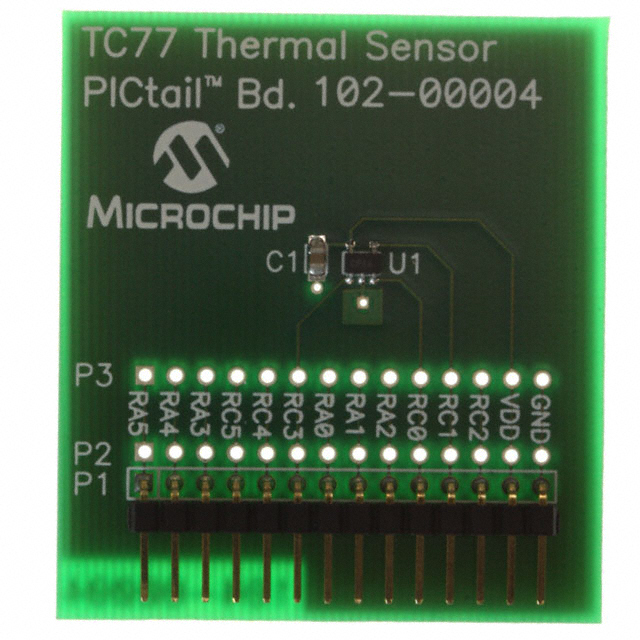

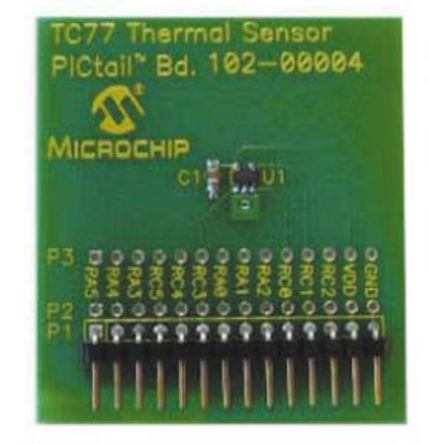

PICtail™ TC77 Thermal Sensor Demo Board
This Demo Board demonstrates how to interface the TC77 Thermal Sensor device to a PIC microcontroller. This board can connect directly to a PICkit™ 1 Flash Starter Kit, providing a platform for code development and evaluation.
TC77 transmits temperature data via SPI serial bus to a PIC microcontroller
Firmware routine performs conversions to °F and °C
Standard 0.1in 14-pin header for easy interface to PICkit™ 1 Flash Starter Kit or custom application
### 随附
Users Guide DS51484, AN913: Interfacing the TC77 Thermal Sensor to a PICmicro® Microcontroller,
DS00913, PIC16F676 microcontroller, PIC16F676 firmware
