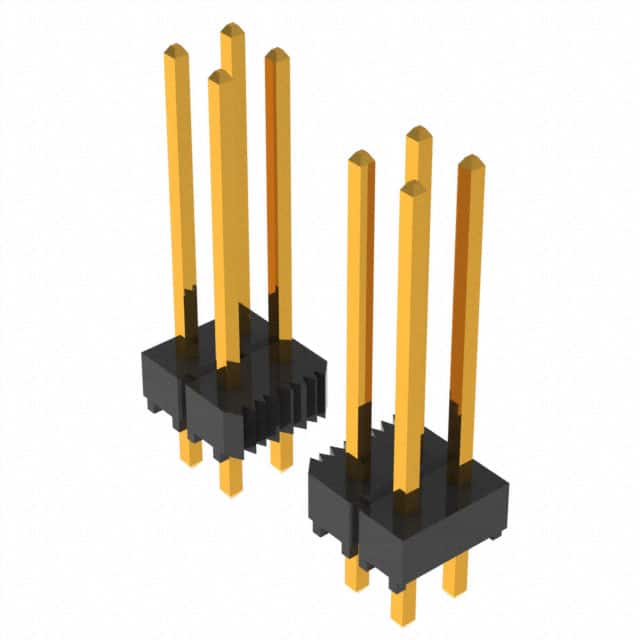

TSW-108-15-G-D

2.54mm 方针

针座 通孔 16 位置 0.100"（2.54mm）

欧时:
Classic PCB HDR Strips 0.100"

得捷:
CONN HEADER VERT 16POS 2.54MM

立创商城:
2.54mm 方针

艾睿:
Use this unshrouded TSW-108-15-G-D connector from Samtec when board-to-board interconnects is required. This HDR connector&s;s 16 contacts that are made out of phosphor bronze and plated with gold over nickel. This is a 2-row connector. Its pitch is 2.54 mm. It has a straight body orientation. It has a header type gender. It has a maximum voltage rating of 550 VAC. This device has a maximum current rating of 6.3 A/contact. This product comes packaged in bulk, so the parts will be stored loosely. It uses the solder termination method. TSW-108-15-G-D is housed in black polyester. This connector has an operating temperature of -55 to 125 °C. This product is 20.32 mm long, 15.75 mm tall and 5.08 mm deep.

Newark:
# SAMTEC  TSW-108-15-G-D  Board-To-Board Connector, 2.54 mm, 16 Contacts, Header, TSW Series, Through Hole, 2 Rows
