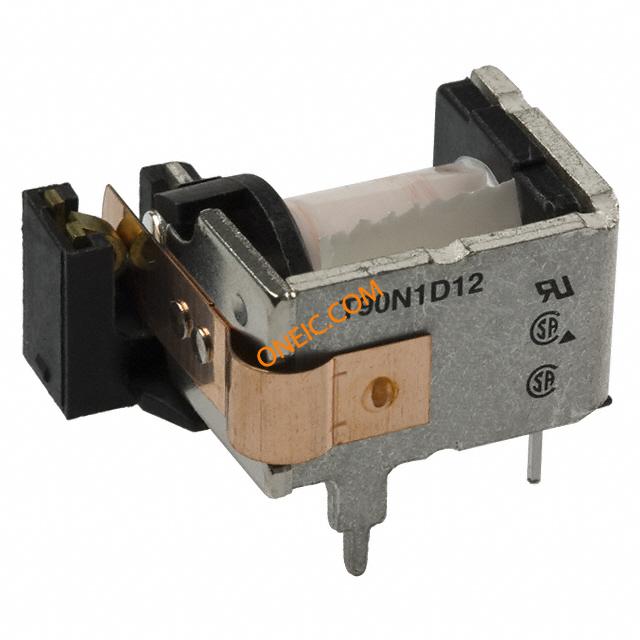

Power Relay 12VDC 30A SPDT 30.5mm 24.13mm 17.27mm Through Hole
Power Relay 12VDC 30A SPDT30.5x24.13x17.27mm THT
Product Highlights
T90 Series
Contact Arrangement = 1 Form C, SPDT, 1 C/O
Contact Current Rating = 20 Amps.
Monostable Coil Magnetic System
Without Coil Suppression Diode
得捷:
RELAY GEN PURPOSE SPDT 20A 12V
艾睿:
Power Relay 12VDC 30A SPDT30.5x24.13x17.27mm THT
Chip1Stop:
Electromechanical Relay SPDT 30A 12VDC 155Ohm Through Hole
Verical:
Power Relay 12VDC 30A SPDT 30.5mm 24.13mm 17.27mm THT
MASTER:
Power Relay 12VDC 30A SPDT30.5x24.13x17.27mm THT
Online Components:
Power Relay 12VDC 30A SPDT30.5x24.13x17.27mm THT
Electro Sonic:
Power Relay 12VDC 30A SPDT30.5x24.13x17.27mm THT
输入电压DC 12.0 V
触点额定电流 20.0 A
线圈电压 12 VDC
线圈电流 77 mA
线圈功率DC 930 mW
线圈电阻 155 Ω
线圈电压DC 12 V
线圈功率 900 mW
开关电流Max 30 a
工作温度Max 85 ℃
工作温度Min -55 ℃
安装方式 Through Hole
长度 30.5 mm
宽度 24.13 mm
高度 17.27 mm
触点材质 Silver Cadmium Oxide
工作温度 -55℃ ~ 85℃
产品生命周期 Active
包装方式 Tray
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Non-Compliant
ECCN代码 EAR99
HTS代码 8536410050
