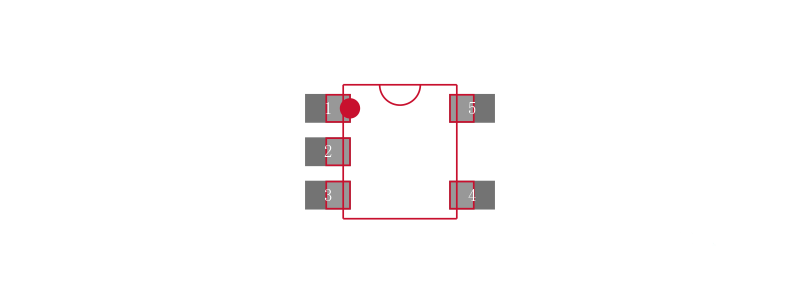

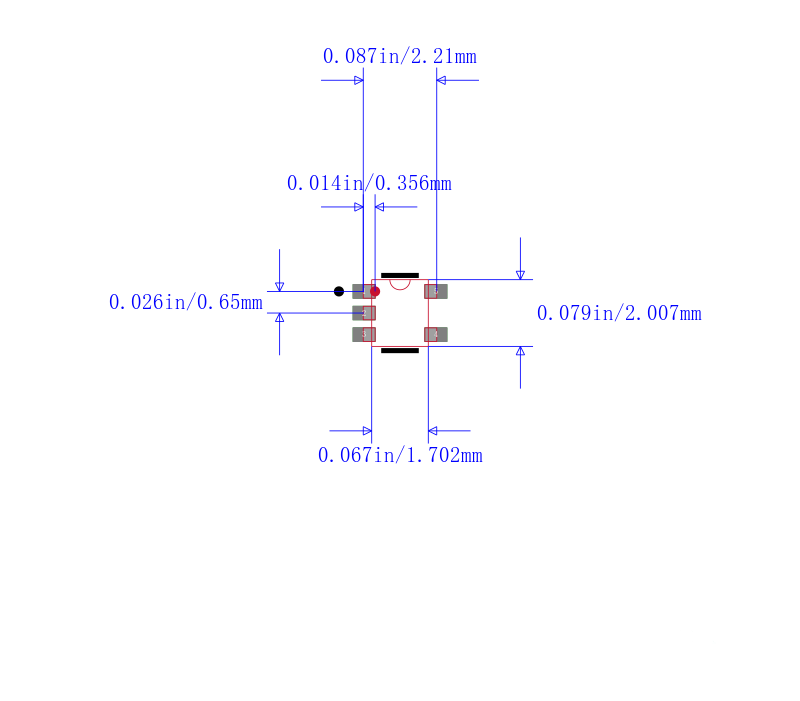

TC7S08FU

INCORRECT MOUSER P/N High Speed

逻辑类型Logic Type| 与门 AND Gate \---|--- 电路数Number of Circuits| 1 输入数Number of Inputs| 2 电源电压VccVoltage - Supply| 2V~6V 静态电流IqCurrent - Quiescent Max| 1µA 输出高，低电平电流Current - Output High, Low| -2.6mA,2.6mA 低逻辑电平Logic Level - Low| 0.5V~1.8V 高逻辑电平Logic Level - High| 1.5v~4.2V 传播延迟时间@Vcc，CLMax Propagation Delay @ V, Max CL| 17ns @ 6V，50pF Description & Applications| 2-Input AND Gate ；High Speed : tpd = 7ns typ. at VCC = 5 V • Low power dissipation : ICC = 1 μA max at Ta = 25°C • High noise immunity : VNIH = VNIL = 28% VCC min • Output drive capability : 5 LSTTL Loads • Symmetrical Output Impedance |IOH| = IOL= 2mA min • Balanced propagation delays : tpLH ≒ tpHL • Wide operating voltage range : VCC = 2 to 6 V 描述与应用| 2输入与门;高速：TPD =7NS VCC= 5 V（典型值） •低功耗：ICC=1μA（最大值）在大= 25°C •高抗干扰性：VNIH= VNIL=28％VCC （分钟） •输出驱动能力：5个输入通道负载 •对称的输出阻抗| IOH|：IOL=2毫安（分钟） •平衡传输时延：TPLH≒TPHL •宽工作电压范围：VCC=2到6 V
