步进电机驱动器 STEPPER MOTOR DRIVER
Description
The circuits consist of an LS-TTL compatible logic input, a current sensor, a monostable and an output stage with built-in protection diodes. Two ICs and a few external components form a complete control and drive unit for LS-TTL or microprocessor-controlled stepper motor systems.
Features
■ Half-step and full-step mode
■ Bipolar drive of stepper motor for maximum motor performance
■ Built-in protection diodes
■ Wide range of current control 5 to 1500 mA
■ Wide voltage range 10 to 50 V
■ Designed for unstabilized motor supply voltage
■ Current levels can be selected insteps or varied continuously
■ Thermal overload protection
■ Alarm output or pre-alarm output
Applications

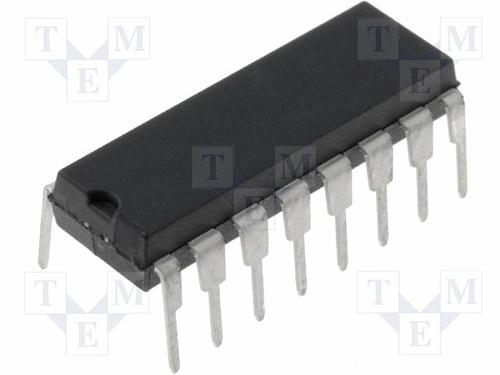

The TEA3718 is a bipolar monolithic integrated circuit intended to control and drive the current in one winding of a bipolar stepper motor.
