具有使能功能的汽车类 300mA、低 IQ、低压降稳压器 6-WSON -40 to 150
The TLV733P-Q1 family of low dropout LDO linear regulators are ultra-small, low quiescent current LDOs that can source 300 mA with good line and load transient performance. These devices provide a typical accuracy of 1%.
The TLV733P-Q1 family is designed with a modern capacitor-free architecture to ensure stability without an input or output capacitor. The removal of the output capacitor allows for a very small solution size, and can eliminate inrush current at startup. Furthermore, the TLV733P-Q1 family is also stable with ceramic output capacitors if an output capacitor is necessary. The TLV733P-Q1 family also provides foldback current control during device power-up and enabling if an output capacitor is used. This functionality is especially important in battery-operated devices.
The TLV733P-Q1 family provides an active pulldown circuit to quickly discharge output loads when disabled.

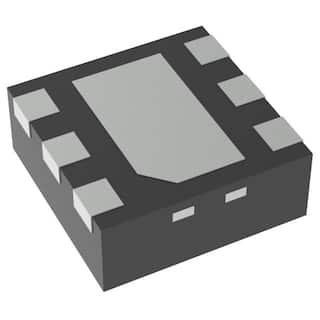

The TLV733P-Q1 family is available in the 6-pin DRV WSON package.
输出接口数 1
输出电压 1.5 V
输出电流 300 mA
静态电流 34.0 µA
输出电容类型 Ceramic
跌落电压 125 mV
调节输出数 1
输入电压Max 5.5 V
输入电压Min 1.4 V
输出电流Max 0.3 A
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±1 %
输入电压 5.5 V
安装方式 Surface Mount
引脚数 6
封装 WDFN-6
封装 WDFN-6
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 无铅
ECCN代码 EAR99
