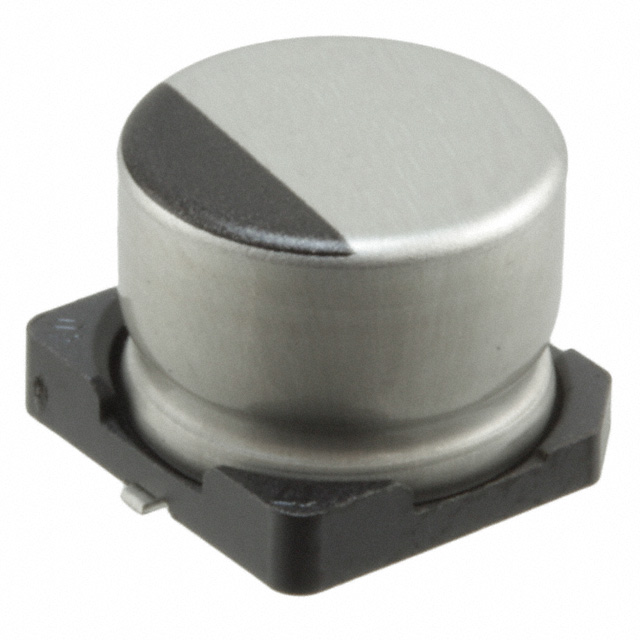

UR 系列 330 uF 6.3 V 20 % 表面贴装 贴片式 铝电解电容
铝电解器 径向,Can - SMD - 85°C 时为 2000 小时
立创商城:
330uF ±20% 6.3V
得捷:
CAP ALUM 330UF 20% 6.3V SMD
艾睿:
Lower the cost of your electronic circuit design by implementing this electrolytic UUR0J331MCL1GS aluminum capacitor from Nichicon. It can withstand a voltage of 6.3 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 85 °C. This product is 6.2 mm tall with a diameter of 8 mm. Its capacitance value is 330uF. Its leakage current is 62.37@1Min μA. It has a tolerance of 20%.
安富利:
NCHUUR0J331MCL1GS
Verical:
Cap Aluminum Lytic 330uF 6.3V 20% 8 X 6.2mm SMD 190mA 2000h 85C Automotive T/R
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
UUR0J331MCL1GS Nichicon 尼吉康 | 当前型号 | 当前型号 |
EEE0JA331P 松下 | 功能相似 | UUR0J331MCL1GS和EEE0JA331P的区别 |
UWS0J331MCL1GS 尼吉康 | 功能相似 | UUR0J331MCL1GS和UWS0J331MCL1GS的区别 |
