UPW1C181MED

PW 系列径向 6.3 到 35V### 径向 105°C

PW 系列径向 6.3 到 35V

欧时:

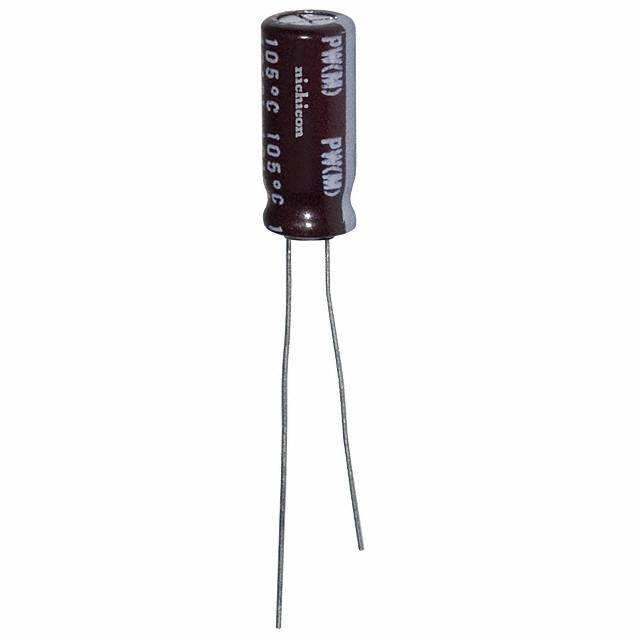

Nichicon 铝电解电容器 PW 系列 16V dc 180μF 通孔 UPW1C181MED, ±20%容差, 最高+105°C

得捷:
CAP ALUM 180UF 20% 16V RADIAL

立创商城:
180uF ±20%

贸泽:
Aluminum Electrolytic Capacitors - Leaded 16volts 180uF 6.3x15 20% 2.5LS

艾睿:
Manufactured from Nichicon, this electrolytic UPW1C181MED aluminum capacitor is made from aluminum foil anode and is ideal for filtering out low frequencies. It can withstand a voltage of 16 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. It has a tolerance of 20%. Its leakage current is 86.4@1Min μA. This product is 15 mm tall with a diameter of 6.3 mm. The UPW1C181MED aluminum electrolytic capacitor has a radial termination style. This part has a lead diameter of 0.5 mm and a pitch of 2.5 mm. Its capacitance value is 180uF.

Allied Electronics:
Capacitor Aluminum Electrolytic Cap 180uF 16V 20% Radial 6.3X15 LS 2.5 mm

安富利:
Cap Aluminum 180uF 16V 20% 6.3 X 15mm Radial 2.5mm 430mA 2000 hr 105°C Bulk

TME:
Capacitor: electrolytic; low impedance; THT; 180uF; 16VDC; ±20%
