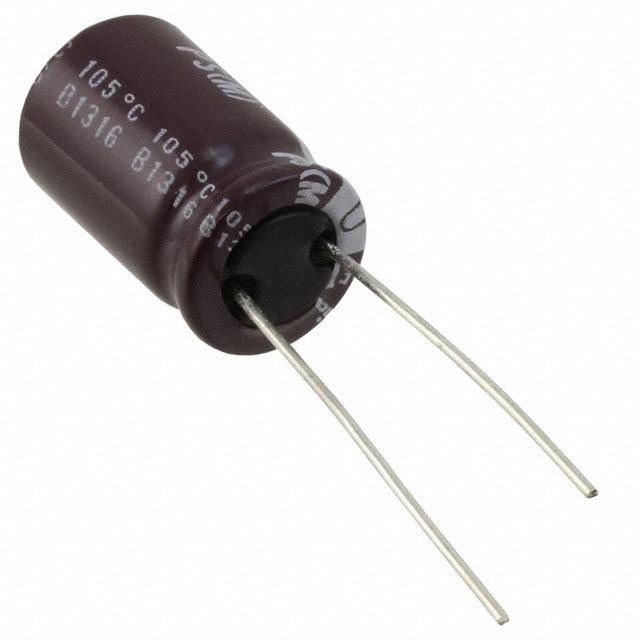

UPS1A102MPD1TD

PS 系列 1000 uF 10 V ±20 % 通孔 铝电解电容

**Features:

**

* Wide Temperature Range Type, Miniature Sized

* Compliant to the RoHS directive 2002/95/EC**

Specifications:

**

* Temperature Range: –55°C to +105°C**

**

* Rated Voltage Range: 6.3-450 V**

**

* Rated Capacitance Range: 0.47 to 15000 μF**

**

* Capacitance Tolerance: ±20% at 120 Hz, 20°C

得捷:
CAP ALUM 1000UF 20% 10V RADIAL

立创商城:
1000uF ±20% 10V

艾睿:

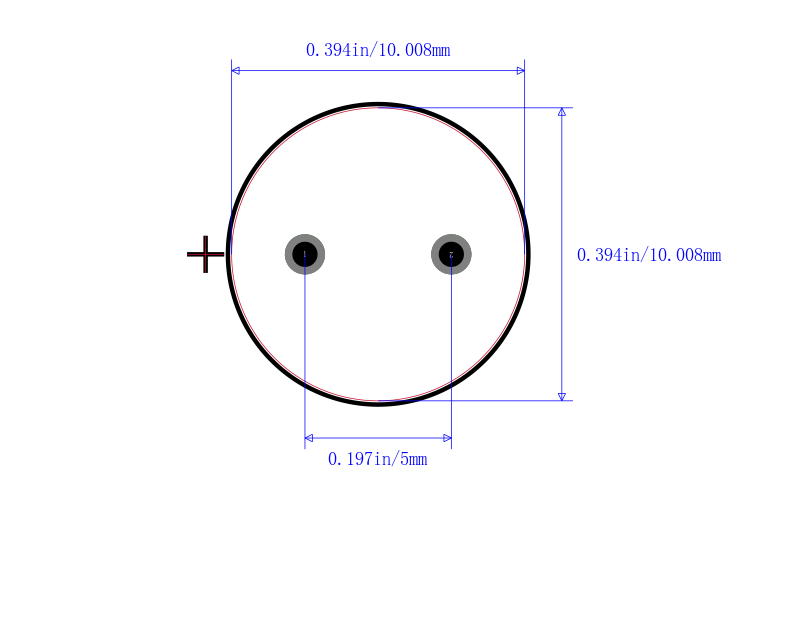

This electrolytic UPS1A102MPD1TD aluminum capacitor from Nichicon has a relatively high ESR meaning that it easily generates high heat for a given current level. It can withstand a voltage of 10 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. The UPS1A102MPD1TD aluminum electrolytic capacitor has a radial termination style. Its capacitance value is 1000uF. This part has a lead diameter of 0.6 mm and a pitch of 5 mm. It has a tolerance of 20%. This product is 16 mm tall with a diameter of 10 mm. Its leakage current is 300@1Min μA.

Allied Electronics:
1000uF 10 V Aluminium Electrolytic Capacitor, PS Series 2000h 10 x 16mm

安富利:
Cap Aluminum 1000uF 10V 20% 10 X 16mm Radial Aluminum Cylindrical Can 5mm 800mA 2000 hr 105°C Ammo Pack

Verical:
Cap Aluminum Lytic 1000uF 10V 20% 10 X 16mm Radial 5mm 800mA 2000h 105C
