22uF ±20% 16V 160mA100kHz160mA Φ4mm
22 µF 16 V 铝电解器 径向,Can - SMD - 105°C 时为 2000 小时
得捷:
CAP ALUM 22UF 20% 16V SMD
立创商城:
22uF ±20% 16V
艾睿:
Do you need something that can let through high frequencies and filter out low frequencies? The electrolytic UCL1C220MCL6GS electrolytic capacitor from Nichicon is for you. It can withstand a voltage of 16 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. Its capacitance value is 22uF. This product is 5.8 mm tall with a diameter of 4 mm. Its leakage current is 3.52@2Min μA. It has a tolerance of 20%.
安富利:
Cap Aluminum 22uF 16V 20% 4 X 5.8mm Cylindrical 160mA 2000 hr 105°C T/R
Verical:
Cap Aluminum Lytic 22uF 16V 20% 4 X 5.8mm SMD 160mA 2000h 105C Automotive T/R
Newark:

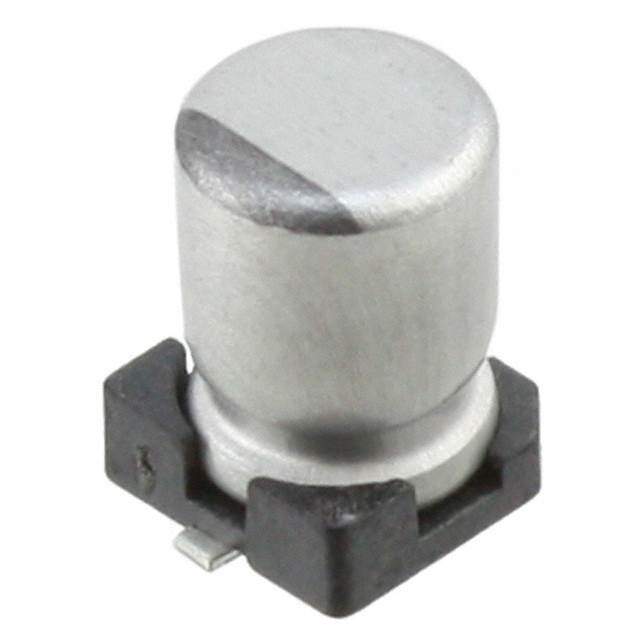

# NICHICON UCL1C220MCL6GS SMD Aluminum Electrolytic Capacitor, Radial Can - SMD, 22 µF, 16 V, CL Series
额定电压DC 16.0 V
电容 22 µF
等效串联电阻ESR 850 mΩ
容差 ±20 %
产品系列 UCL
纹波电流 160 mA
纹波电流高频 80mA @120Hz
纹波电流低频 160mA @100kHz
工作温度Max 105 ℃
工作温度Min -55 ℃
额定电压 16 V
安装方式 Surface Mount
引脚数 2
封装 SMD
长度 4.6 mm
宽度 4.3 mm
高度 5.8 mm
直径 4.00 mm
封装 SMD
介质材料 Aluminum Electrolytic
工作温度 -55℃ ~ 105℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 2000
寿命(小时) 2000 h
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
UCL1C220MCL6GS Nichicon 尼吉康 | 当前型号 | 当前型号 |
UCL1A220MCL1GS 尼吉康 | 类似代替 | UCL1C220MCL6GS和UCL1A220MCL1GS的区别 |
UCL0J220MCL1GS 尼吉康 | 类似代替 | UCL1C220MCL6GS和UCL0J220MCL1GS的区别 |
EEEFPC220UAR 松下 | 功能相似 | UCL1C220MCL6GS和EEEFPC220UAR的区别 |
