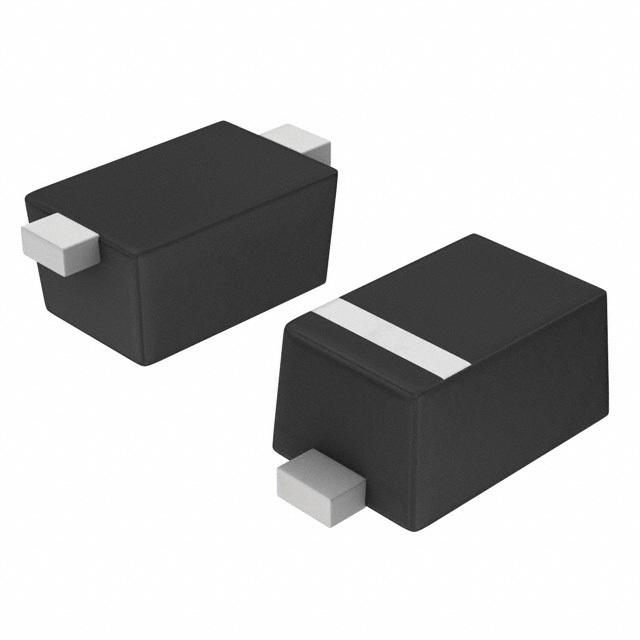

SEMTECH UCLAMP1201H.TCT TVS二极管, TVS, µClamp系列, 单向, 12 V, 25 V, SOD-523, 2 引脚
25V 夹子 8A（8/20µs） Ipp TVS - 表面贴装型 SOD-523
得捷:
TVS DIODE 12VWM 25VC SOD523
立创商城:
Vrwm:12V@Max 200W
e络盟:
TVS二极管, µClamp系列, 单向, 12 V, 25 V, SOD-523, 2 引脚
艾睿:
Get protected from high voltage shocks with this tvs UCLAMP1201H.TCT ESD protection device developed by Semtech. This ESD diode has a maximum ESD protection device voltage of ±20@Air Gap/±15@Contact Disc kV. This device&s;s maximum clamping voltage is 25 V. This ESD diode has an operating temperature range of -55 °C to 125 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. It is made in a single configuration.
Chip1Stop:
ESD Suppressor TVS ?20KV 2-Pin SOD-523 T/R
Verical:
ESD Suppressor TVS 12V 2-Pin SOD-523 T/R
Online Components:
ESD Suppressor TVS 12V 2-Pin SOD-523 T/R
Win Source:
TVS DIODE 12VWM 25VC SOD523
额定电压DC 12.0 V
额定功率 200 W
击穿电压 13.3 V
针脚数 2
耗散功率 200 W
钳位电压 25 V
最大反向击穿电压 13.3 V
脉冲峰值功率 200 W
最小反向击穿电压 13.3 V
工作温度Max 125 ℃
工作温度Min -55 ℃
安装方式 Surface Mount
引脚数 2
封装 SOD-523
长度 1.70 mm
宽度 900 µm
高度 0.7 mm
封装 SOD-523
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 工业, 音频, Industrial, 便携式器材, 传感与仪器, Sensing & Instrumentation, 通用, Consumer Electronics, Audio, Portable Devices, 计算机和计算机周边, Computers & Computer Peripherals, 消费电子产品
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/06/16
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
UCLAMP1201H.TCT Semtech Corporation | 当前型号 | 当前型号 |
UCLAMP0501H.TCT Semtech Corporation | 类似代替 | UCLAMP1201H.TCT和UCLAMP0501H.TCT的区别 |
UCLAMP0501P.TCT Semtech Corporation | 功能相似 | UCLAMP1201H.TCT和UCLAMP0501P.TCT的区别 |
