绝缘超快整流器模块， 240 Insulated Ultrafast Rectifier Module, 240 A
DESCRIPTION

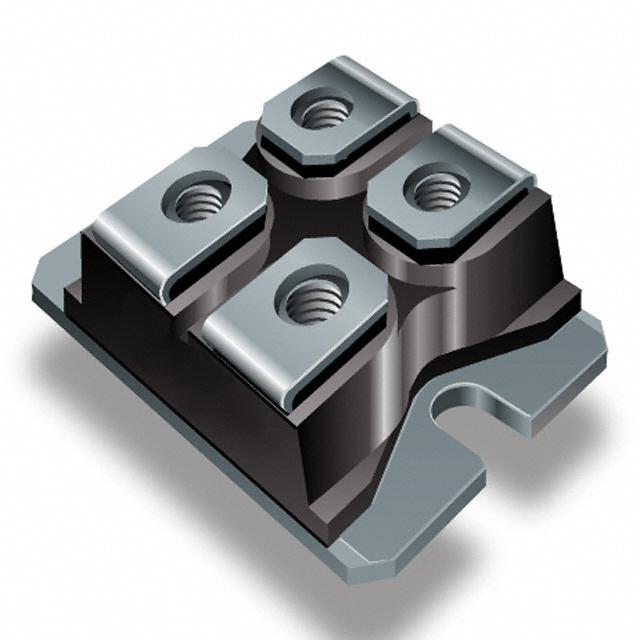

The P insulated modules integrate two state of the art ultrafast recovery rectifiers in the compact, industry standard SOT-227 package. The planar structure of the diodes, and the platinum doping life time control, provide a ultrasoft recovery current shape, together with the best overall performance, ruggedness and reliability characteristics.
These devices are thus intended for high frequency applications in which the switching energy is designed not to be predominant portion of the total energy, such as in the output rectification stage of welding machines, SMPS, dc-to-dc converters. Their extremely optimized stored charge and low recovery current reduce both over dissipation in the switching elements and snubbers and EMI/RFI.
FEATURES
• Two fully independent diodes
• Ceramic fully insulated package VISOL = 2500 VAC
• Ultrafast reverse recovery
• Ultrasoft reverse recovery current shape
• Low forward voltage
• Optimized for power conversion: welding and industrial SMPS applications
• Industry standard outline
• Plug-in compatible with other SOT-227 packages
• Easy to assemble
• Direct mounting to heatsink
• UL approved file E78996
• Compliant to RoHS directive 2002/95/EC
• Designed and qualified for industrial level
