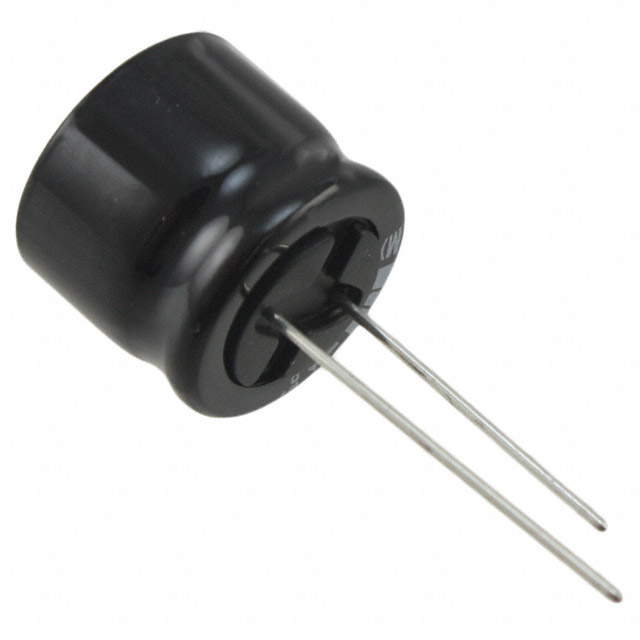

UHE1J391MHD

HE 系列 390 µF 63 V ± 20 % 通孔 铝电解电容

390µF 63V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C

得捷:
CAP ALUM 390UF 20% 63V RADIAL

立创商城:
390uF ±20% 63V

贸泽:
Aluminum Electrolytic Capacitors - Leaded 63volts 390uF 18x15 20% 7.5LS

艾睿:
This electrolytic UHE1J391MHD aluminum capacitor from Nichicon has a relatively high equivalent series resistance which allows it to generate high heat for a given current level. It can withstand a voltage of 63 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. This product is 15 mm tall with a diameter of 18 mm. The UHE1J391MHD aluminum electrolytic capacitor has a radial termination style. It has a tolerance of 20%. Its capacitance value is 390uF. Its leakage current is 245.7@2Min μA. This part has a lead diameter of 0.8 mm and a pitch of 7.5 mm.

Chip1Stop:
Cap Aluminum Lytic 390uF 63V 20% 18 X 15mm Radial 7.5mm 1030mA 10000h 105℃ Bulk
