330uF ±20% 25V Φ8mm 11.5mm
330µF 25V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C
得捷:
CAP ALUM 330UF 20% 25V RADIAL
立创商城:
330uF ±20% 25V
艾睿:

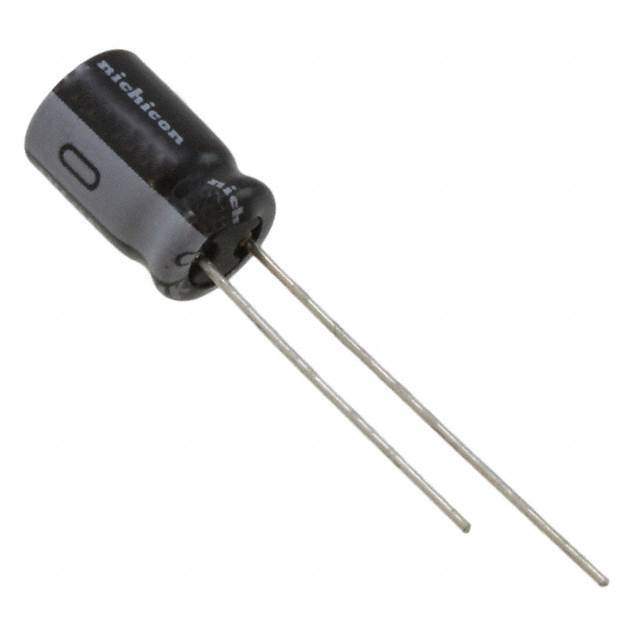

Do you need something that can let through high frequencies and filter out low frequencies? The electrolytic UVK1E331MPD electrolytic capacitor from Nichicon is for you. It can withstand a voltage of 25 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 85 °C. It has a tolerance of 20%. This product is 11.5 mm tall with a diameter of 8 mm. Its leakage current is 247.5@1Min|82.5@2Min μA. The UVK1E331MPD aluminum electrolytic capacitor has a radial termination style. This part has a lead diameter of 0.6 mm and a pitch of 3.5 mm. Its capacitance value is 330uF.
Chip1Stop:
Cap Aluminum Lytic 330uF 25V 20% 8 X 11.5mm Radial 3.5mm 390mA 2000h 85C Bulk
Verical:
Cap Aluminum Lytic 330uF 25V 20% 8 X 11.5mm Radial 3.5mm 390mA 2000h 85C Bulk
额定电压DC 25 V
电容 330 µF
容差 ±20 %
产品系列 UVK
纹波电流 390 mA
纹波电流高频 390mA @120Hz
纹波电流低频 585mA @10kHz
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压 25 V

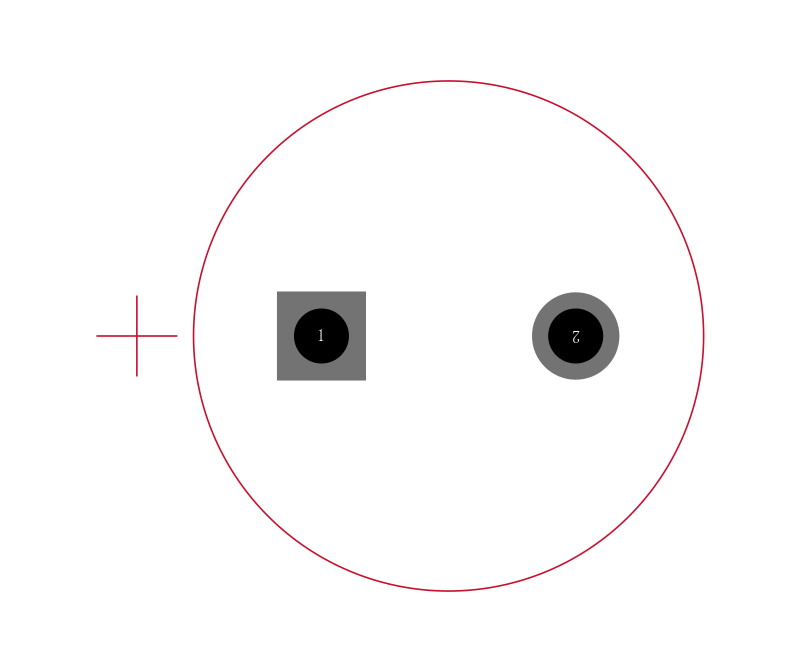

安装方式 Through Hole
引脚数 2
封装 Radial, CAN

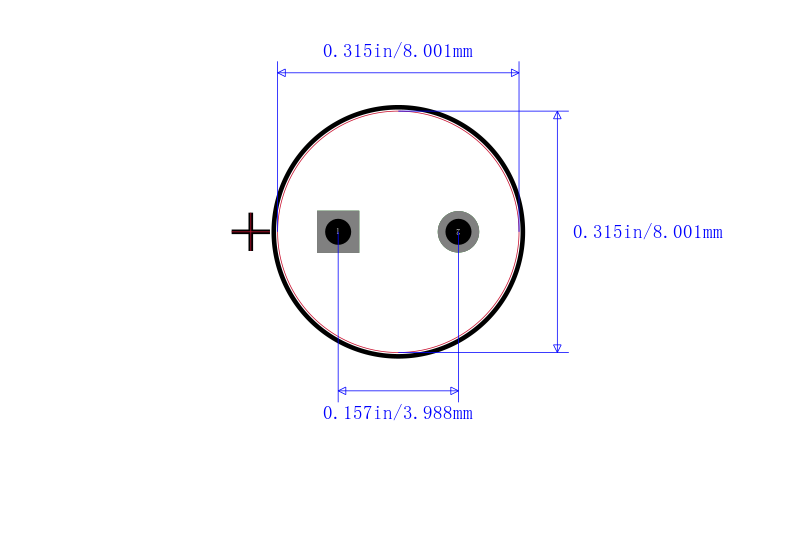

引脚间距 3.5 mm
高度 11.5 mm
直径 Φ8mm
封装 Radial, CAN
引脚间距 3.5 mm
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Bulk
最小包装 3000
寿命(小时) 2000 h
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
UVK1E331MPD Nichicon 尼吉康 | 当前型号 | 当前型号 |
EKMG250ELL331MHB5D 贵弥功 | 功能相似 | UVK1E331MPD和EKMG250ELL331MHB5D的区别 |
ESMG250ELL331MHB5D 贵弥功 | 功能相似 | UVK1E331MPD和ESMG250ELL331MHB5D的区别 |
NRSY331M25V8X11.5F NIC | 功能相似 | UVK1E331MPD和NRSY331M25V8X11.5F的区别 |
