UCC27201ADRCT

MOSFET 和 IGBT 半桥栅极驱动器，Texas Instruments### MOSFET & IGBT 驱动器，Texas Instruments

DESCRIPON

The UCC27200A/1A family of high frequency N-Channel MOSFET drivers include a 120-V bootstrap diode and high-side/low-side driver with independent inputs for maximum control flexibility. This allows for N-Channel MOSFET control in half-bridge, full-bridge, two-switch forward and active clamp forward converters. The low-side and the high-side gate drivers are independently controlled and matched to 1-ns between the turn-on and turn-off of each other. The UCC27200A/1A are based on the popular UCC27200/1 drivers, but offer some enhancements.

FEATURES

• Specified from -40 °C to 140 °C

• Drives Two N-Channel MOSFETs in High-Side/Low-Side Configuration

• Maximum Boot Voltage 120 V

• Maximum VDD Voltage 20 V

• On-Chip 0.65-V VF, 0.6-Ω RD Bootstrap Diode

• Greater than 1 MHz of Operation

• 20-ns Propagation Delay Times

• 3-A Sink, 3-A Source Output Currents

• 8-ns Rise/7-ns Fall Time with 1000-pF Load

• 1-ns Delay Matching

• Under Voltage Lockout for High-Side and Low-Side Driver

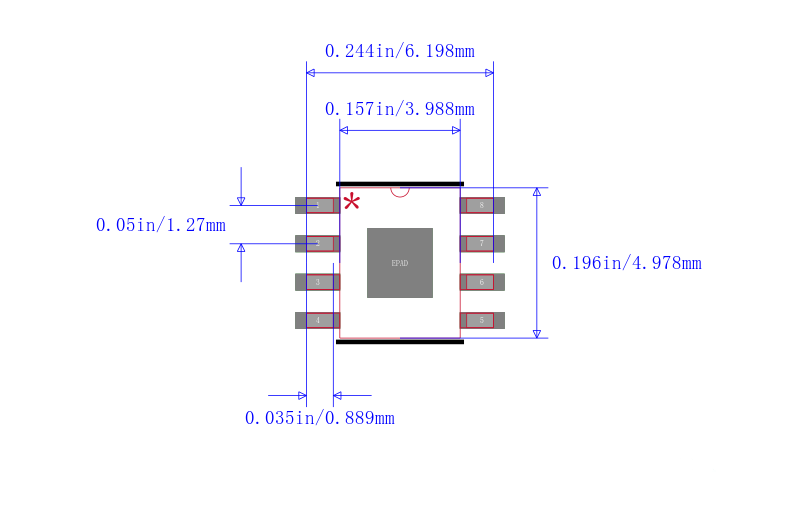

• Offered in 8-Pin SOIC D, PowerPad™ SOIC-8 DDA, SON-8 DRM and SON-9 DRC Packages

APPLICATIONS

• Power Supplies for Telecom, Datacom, and Merchant Markets

• Half-Bridge Applications and Full-Bridge Converters

• Isolated Bus Architecture

• Two-Switch Forward Converters

• Active-Clamp Forward Converters

• High Voltage Synchronous-Buck Converters

• Class-D Audio Amplifiers
