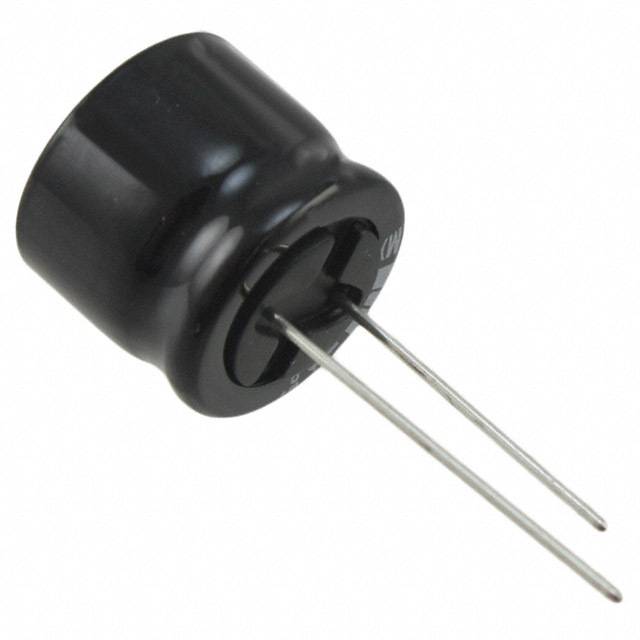

UHE1H102MHD3TN

NICHICON  UHE1H102MHD3TN  铝电解电容, 1000uF, 50V, 径向引线

If you need to filter lower signal frequencies, then this electrolytic aluminum capacitor, developed by , is the tool you need. It can withstand a voltage of 50 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. It has a tolerance of 20%. This part has a lead diameter of 0.8 mm and a pitch of 7.5 mm. Its leakage current is 500@2Min μA. This product is 20 mm tall with a diameter of 18 mm. The UHE1H102MHD3TN aluminum electrolytic capacitor has a radial termination style. Its capacitance value is 1000uF.
