包装材料信息 PACKAGE MATERIALS INFORMATION
Make sure components do not short circuit by properly supplying external current using this current controller from Texas Instruments. Its typical operating supply voltage is 3.3 V. This current mode controller supports forward|full-bridge|half-bridge topology. It has 6 PWM outputs. You can operate this at a switching frequency of 2000 kHz. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This device has a typical operating supply voltage of 3.3 V. Its minimum operating supply voltage of 3 V, while its maximum is 3.6 V. This current mode controller has a minimum operating temperature of -40 °C and a maximum of 125 °C.
输出接口数 6
输入电压DC 3.00V ~ 3.60V
供电电流 60 mA
输入电流 60 mA
上升时间 300 ns
开关频率 2000 kHz
下降时间 300 ns
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 3V ~ 3.6V
输入电压 3V ~ 3.6V
安装方式 Surface Mount
引脚数 48

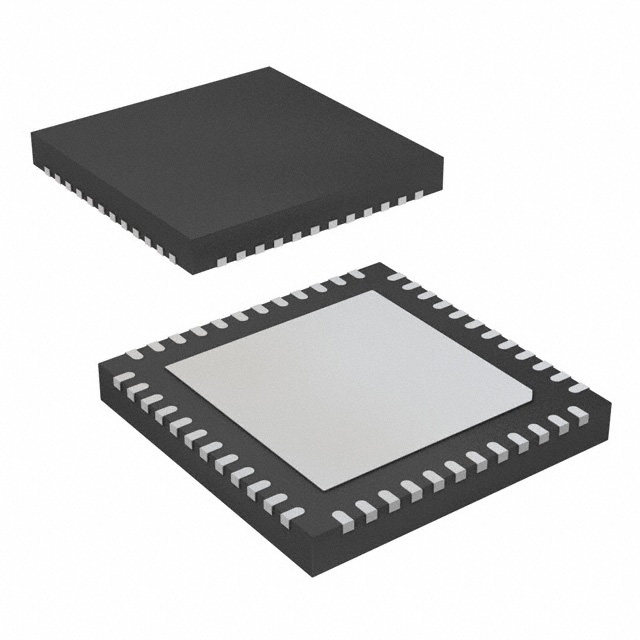

封装 VQFN-48
封装 VQFN-48
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 3A991.a.2
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
UCD3020RGZT TI 德州仪器 | 当前型号 | 当前型号 |
UCD3020RGZR 德州仪器 | 完全替代 | UCD3020RGZT和UCD3020RGZR的区别 |
