BiCMOS高级相移PWM控制器 BiCMOS ADVANCED PHASE-SHIFT PWM CONTROLLER
The UCC2895-Q1 is a phase-shift pulse-width modulation PWM controller that implements control of a full-bridge power stage by phase shifting the switching of one half-bridge with respect to the other. It allows constant-frequency PWM in conjunction with resonant zero-voltage switching to provide high efficiency at high frequencies. The device can be used either as a voltage-mode or current-mode controller.
Although the UCC2895-Q1 maintains the functionality of the UC3875/6/7/8 family and UC3879, it improves on that controller family with additional features such as enhanced control logic, adaptive delay set, and shutdown capability. Because it is built using the BCDMOS process, it operates with dramatically less supply current than its bipolar counterparts. The UCC2895-Q1 can operate with a maximum clock frequency of 1 MHz.
输出接口数 4
输出电流 100 mA
耗散功率 650 mW
调节输出数 4
开关频率 1000 kHz
拓扑结构 Full-Bridge
占空比 100 %
最大占空比 100 %
工作温度Max 125 ℃
工作温度Min -40 ℃
耗散功率Max 650 mW
电源电压 10V ~ 16.5V
安装方式 Surface Mount

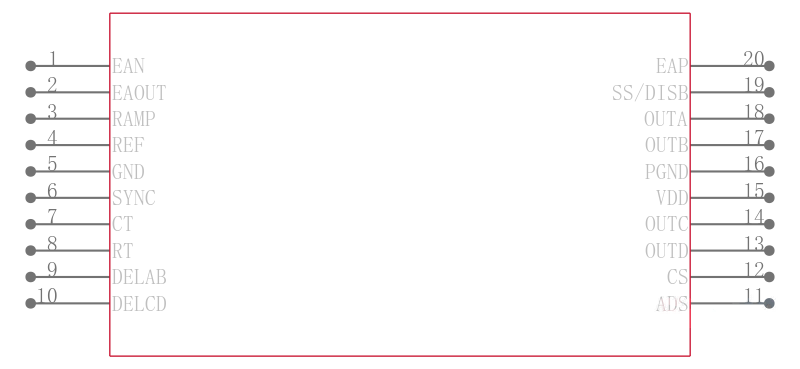

引脚数 20

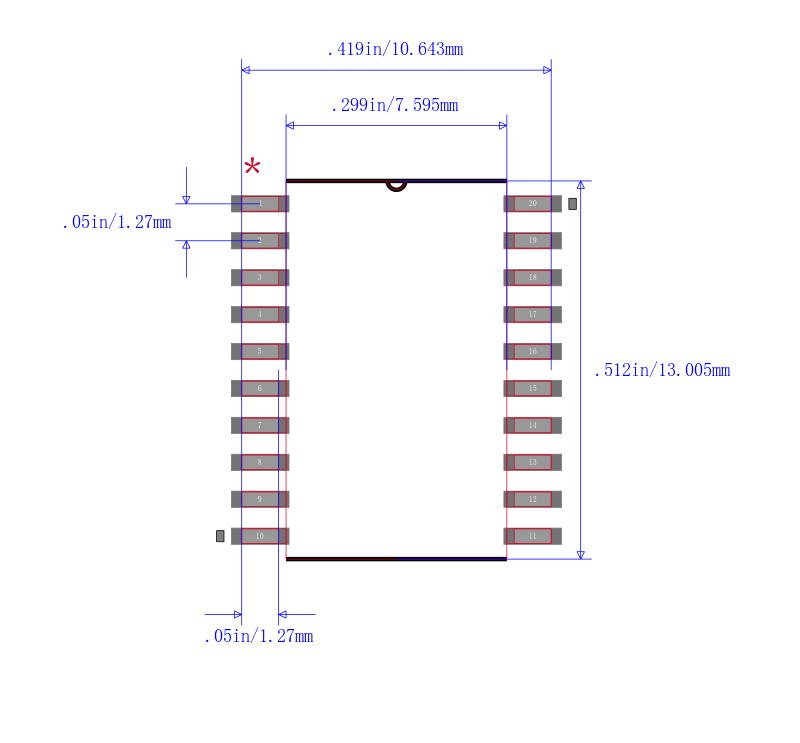

封装 SOIC-20
长度 12.8 mm
高度 2.35 mm
封装 SOIC-20
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
