UPH2W101MHD

100uF ±20% 450V 1095mA100kHz1095mA Φ16mm

铝电解器 径向，Can - 105°C 时为 2000 小时

得捷:
CAP ALUM 100UF 20% 450V RADIAL

立创商城:
100uF ±20% 450V

艾睿:

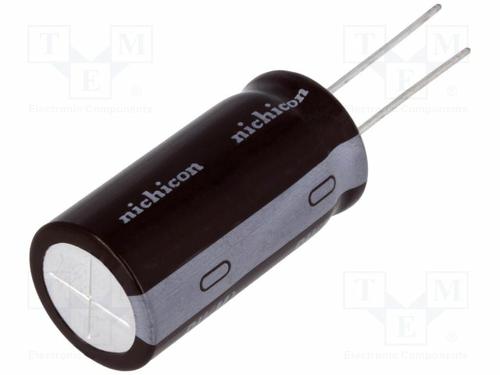

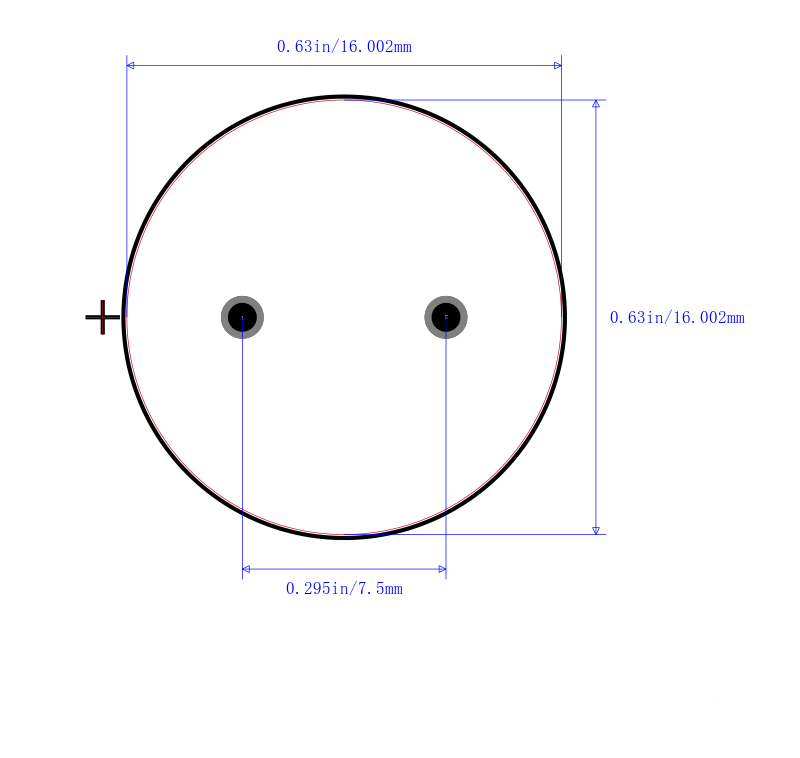

The pure aluminum anode on the electrolytic UPH2W101MHD electrolytic capacitor, designed from Nichicon, is the solution to your signal filtering needs. It can withstand a voltage of 450 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. Its capacitance value is 100uF. Its leakage current is 1900@1Min μA. This product is 35.5 mm tall with a diameter of 16 mm. This part has a lead diameter of 0.8 mm and a pitch of 7.5 mm. The UPH2W101MHD aluminum electrolytic capacitor has a radial termination style. It has a tolerance of 20%.

Allied Electronics:
Capacitor; Al Electrolytic; Cap 100 uF; Tol 20%; Vol-Rtg 450 VDC; Radial; Bulk

安富利:
Cap Aluminum 100uF 450V 20% 16 X 35.5mm Radial Aluminum Cylindrical Can 7.5mm 730mA 2000 hr 105°C Bulk

Chip1Stop:
Cap Aluminum Lytic 100uF 450V 20% 16 X 35.5mm Radial 7.5mm 730mA 2000h 105℃ Bulk

TME:
Capacitor: electrolytic; THT; 100uF; 450VDC; Ø16x35.5mm; ±20%

Verical:
Cap Aluminum Lytic 100uF 450V 20% 16 X 35.5mm Radial 7.5mm 730mA 2000h 105C Bulk
