UPT2G271MRD

270uF ±20% 400V Φ22mm 50mm

270 µF 400 V 铝电解器 径向，Can - 105°C 时为 5000 小时

立创商城:
270uF ±20% 400V

得捷:
CAP ALUM 270UF 20% 400V RADIAL

艾睿:

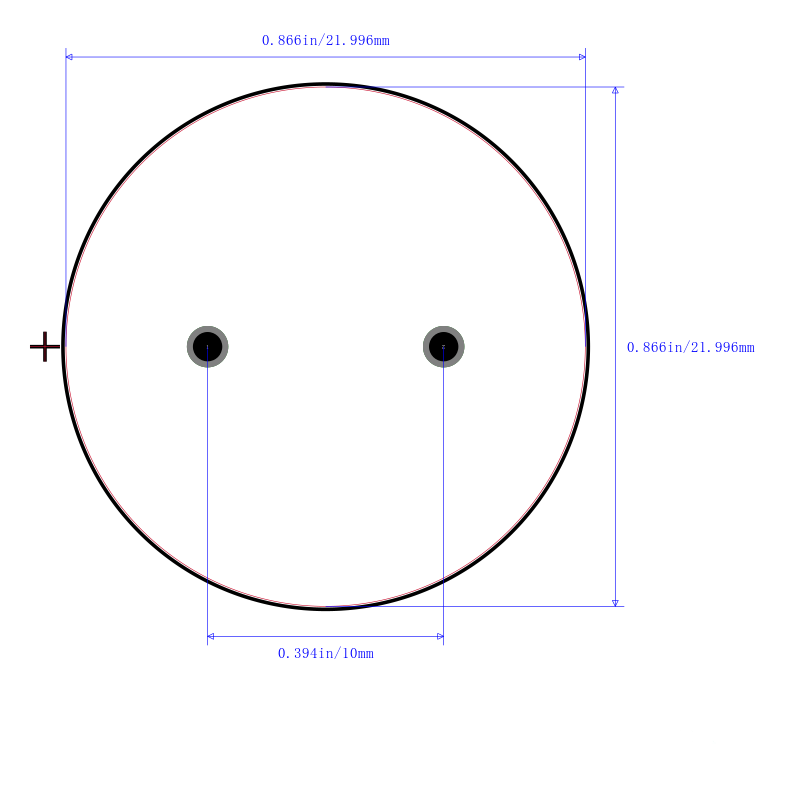

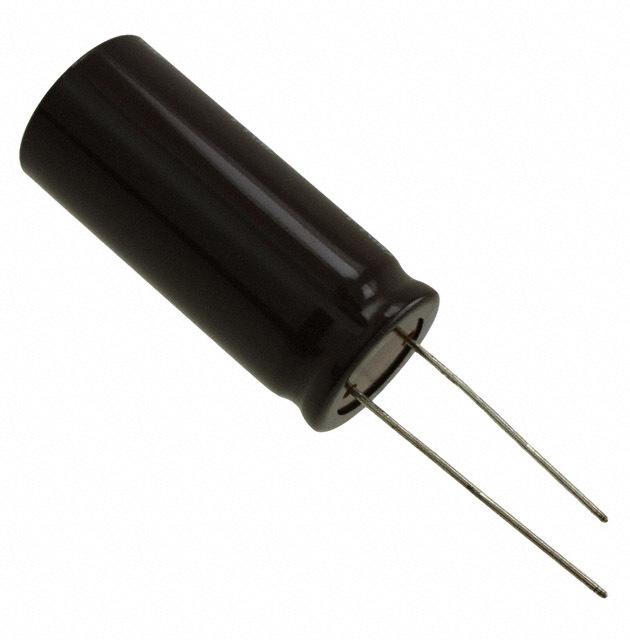

This electrolytic UPT2G271MRD aluminum capacitor from Nichicon has an anode consisting of pure aluminum foil and is used to filter lower frequencies. It can withstand a voltage of 400 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. This part has a lead diameter of 1 mm and a pitch of 10 mm. The UPT2G271MRD aluminum electrolytic capacitor has a radial termination style. It has a tolerance of 20%. This product is 50 mm tall with a diameter of 22 mm. Its capacitance value is 270uF.

安富利:
NCHUPT2G271MRD

Newark:
# NICHICON  UPT2G271MRD  Electrolytic Capacitor, Miniature, 270 µF, 400 V, PT Series, ± 20%, Radial Leaded, 22 mm
