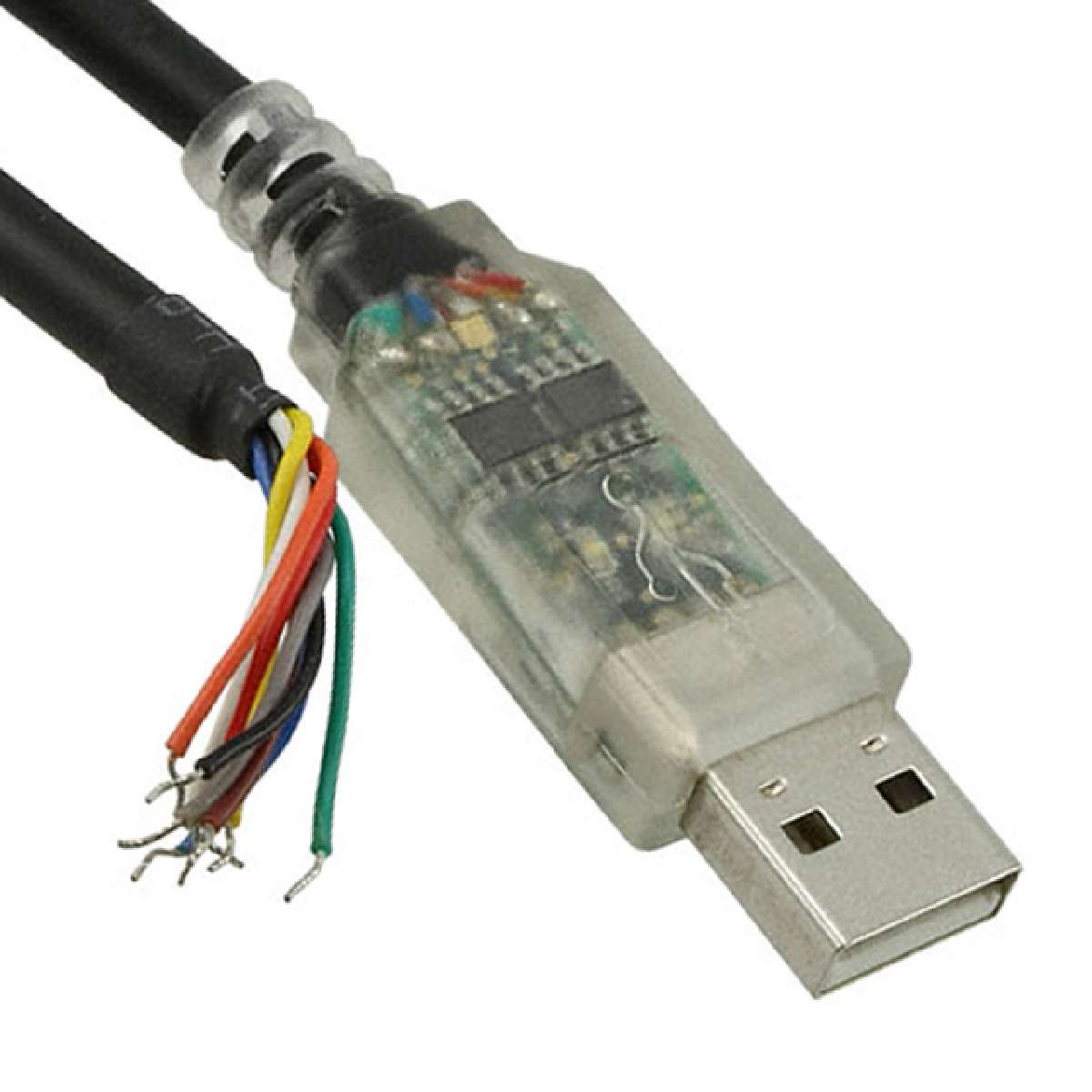

FTDI USB-RS422-WE-5000-BT 电缆, USB/RS422转换器, 线端, 5M
USB to RS-422 Converter Cables,
These cables provide a fast and simple method to convert RS-422 level serial UART to USB. The USB connector contains a small circuit board featuring the FTDI FT232RQ RS 730-0168 serial UART interface IC to handle all the USB signalling and protocols. There are two LEDs to indicate data being received and transmitted. They have a maximum UART Baud Rate of 3 Mbaud.
These converters are supported with Microsoft WHQL certified VCP drivers for Windows, Apple Mac, and Linux. All of which are available, royalty-free from FTDI website. http://www.ftdichip.com
The other end of the cable is bare, tinned wire ended and can be customised to your needs using various connectors.
FTDI Chip USB-RS422-WE-1800-BT - RS 687-7831, cable length 1.8 m
FTDI Chip - RS 730-0161, cable length 5 m
### 认可
FCC, CE, RoHS compliant.
触点数 9
极性 Male
额定电流 15 mA
通道数 1
芯数 9
额定电压 5 V
长度 5 m
电缆长度 5 m
颜色 Black
产品生命周期 Active
包装方式 Bulk
制造应用 工业, USB 至 RS422, 安全, Industrial, Communications & Networking, Sensing & Instrumentation, 通信与网络, 传感与仪器, Security
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
