UTS6JC1412S

SOURIAU  UTS6JC1412S  圆形连接器外壳, Trim Trio UTS系列, 插头, 12 路, 母, 电缆安装, 14-12

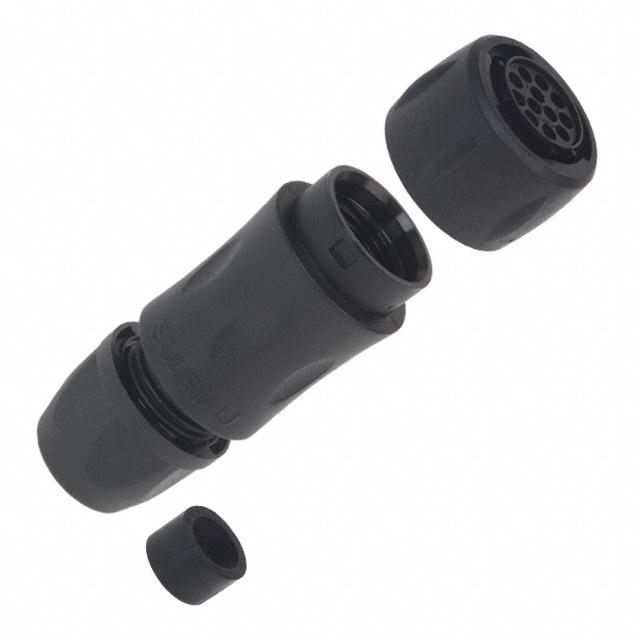

UTS 电缆插头，带底壳

每个插头具有两个密封件，可覆盖指定电缆系列

标准密封是预装的

另一个密封件提供活块，带插头

### 注

"3、4、7、8 和 12 路使用功能尺寸 16 触点

6、10 和 19 路使用尺寸 20 触点

底壳接受：

尺寸 10，1.5-8.0mm

尺寸 12，3-12.0mm

尺寸 14，5-14.0mm

欧时:
UTS6JC1412S Souriau 电缆安装 圆形连接器 UTS 系列 12路, 14外壳尺寸, 母芯 直向 插头, 卡口式接合

贸泽:
Standard Circular Connector 12P Strt Socket Plug Backshell Size 14

e络盟:
圆形连接器, Trim Trio UTS系列, 直型插头, 12 触点, 压接插座-无触芯, 卡口, 尼龙聚酰胺主体

艾睿:
This cpc UTS6JC1412S connector from Souriau will connect any inputs and outputs to your application. Its shell size is 14-12. This socket type connector has 12 socket type contacts. It has a straight body orientation. It has a plug type gender. This device has a maximum current rating of 13 A. This product is 71.5 mm long with a diameter of 34.6 mm. It uses the crimp termination method. This circular connector has an operating temperature of -40 to 105 °C.

Allied Electronics:
connector, plastic circ, size 14, str plugw/bkshl, for 12 size 16 socket cont, seal

Verical:
Conn CPC SKT 12 POS Crimp ST Cable Mount 12 Terminal 1 Port

Newark:
# SOURIAU  UTS6JC1412S  Circular Connector Housing, Trim Trio UTS Series, Plug, 12, Socket, Cable Mount, 14-12
