VCA2618YT

Dual, Variable Gain Amplifier with Input Buffer 32-TQFP -40℃ to 85℃

The VCA2618 is a highly integrated, dual receive channel, Variable Gain Amplifier VGA with analog gain control.

The VCA2618’s VGA section consists of two parts: the Voltage Controlled Attenuator VCA and the Programmable Gain Amplifier PGA. The gain and gain range of the PGA can be digitally programmed. The combination of these two programmable elements results in a variable gain ranging from 0dB up to a maximum gain as defined by the user through external connections. The single-ended unity gain input buffer provides predictable high input impedance. The output of the VGA can be used in either a single-ended or differential mode to drive high-performance Analog-to-Digital A/D converters. A separate power-down pin reduces power consumption.

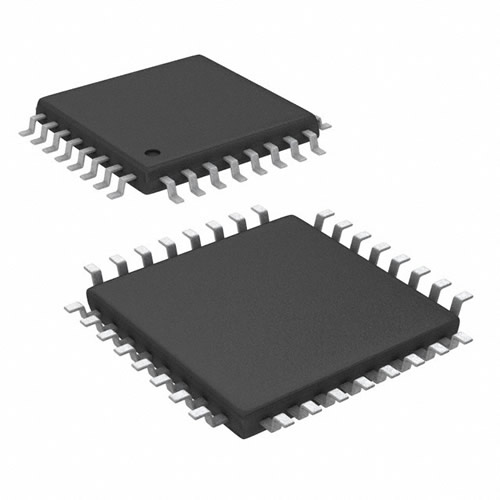

The VCA2618 also features low crosstalk and outstanding distortion performance. The combination of low noise and gain range programmability make the VCA2618 a versatile building block in a number of applications where noise performance is critical. The VCA2618 is available in a TQFP-32 package.
