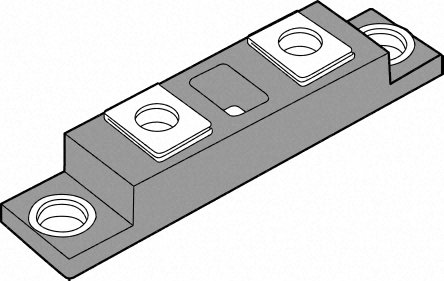

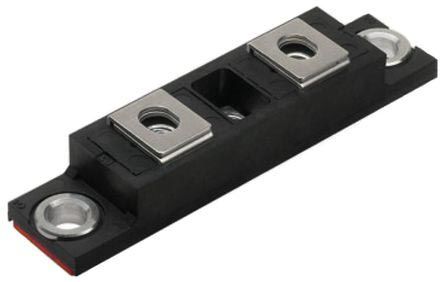

VS-403CNQ100PBF

VISHAY  VS-403CNQ100PBF.  二极管模块, 肖特基, 100 V, 400 A, 690 mV, 双路共阴极, VS-40 Series

The is a high performance Schottky Rectifier Module has been optimized for low reverse leakage at high temperature. The Q series Schottky rectifier has proprietary barrier technology allows for reliable operation up to 175°C junction temperature. The centre tap Schottky rectifier features low forward voltage drop, high frequency operation and guard ring for enhanced ruggedness and long term reliability.

.

1A Repetitive avalanche current per leg

.

5500pF Maximum junction capacitance per leg

.

5nH Typical series inductance per leg

.

UL Approved
