HONEYWELL V3-101 微动开关, V3系列, SPDT, 拧紧, 11 A, 277 VAC, 250 VDC

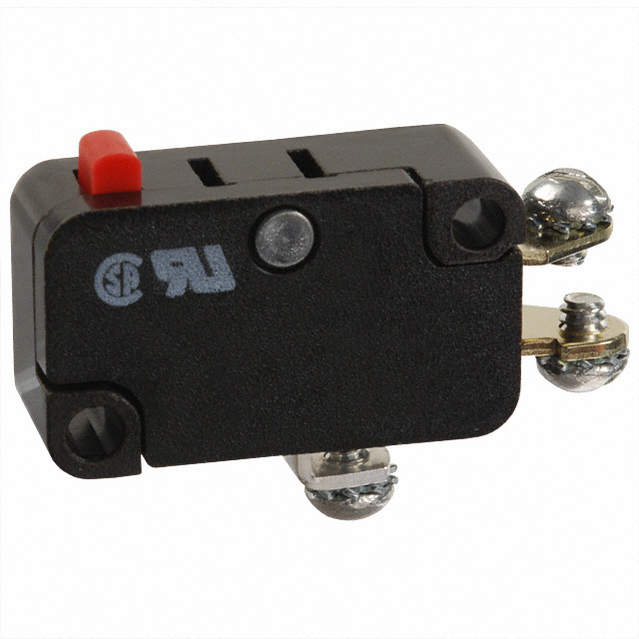

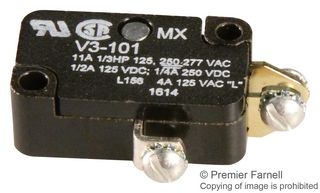

The is a single-pole double-throw SPDT cut-a-way Miniature Basic Switch with a plunger actuator and screw terminations. This V3 series switch features high electrical capacity and long life. The size and shape of the switch meets design requirements in all types of applications. This switch is made up of sturdy aluminium rivet holds cover to case, water-resistant phenolic case and plunger, long life beryllium-copper spring.
- .
- Sensitive differential as low as 0.006" maximum
- .
- High temperature construction for use up to 316°C
额定电压DC 250 V
额定电压AC 277 V
额定电流 11 A
触点类型 SPDT
针脚数 2
触点额定电流 11.0 A
额定电流Max 11 A
额定电压 125 VAC
安装方式 Screw Terminals
封装 -
长度 27.79 mm
宽度 27.7 mm
高度 15.88 mm
封装 -
触点材质 Silver
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Bulk
制造应用 Industrial, 工业
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
ECCN代码 EAR99
HTS代码 8536509055
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
V3-101 Honeywell 霍尼韦尔 | 当前型号 | 当前型号 |
V-10G-1B5-K 欧姆龙 | 功能相似 | V3-101和V-10G-1B5-K的区别 |
V-11-1B5 欧姆龙 | 功能相似 | V3-101和V-11-1B5的区别 |
