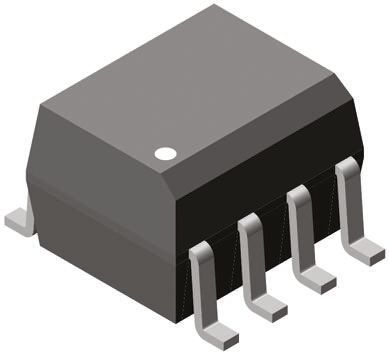

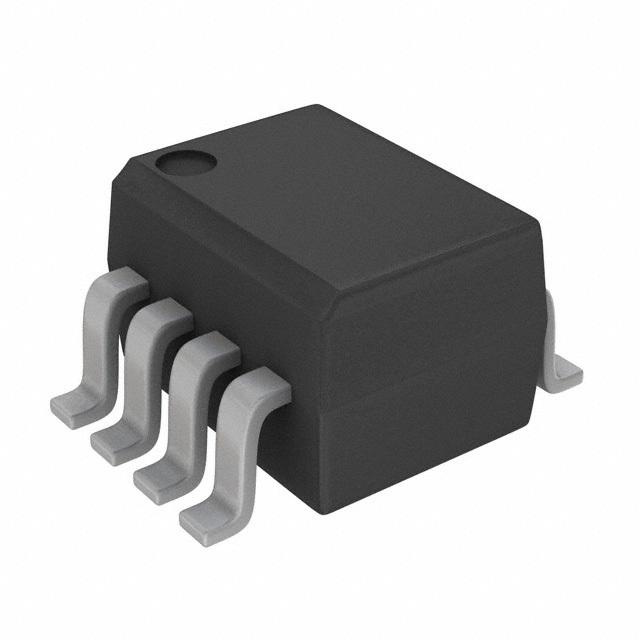

VISHAY VO222AT 光电耦合器, 双路, SOIC-8, >200% CTR
The is a 1-channel 8-pin High Gain Optocoupler with photodarlington output and base connection. It consists of a gallium arsenide infrared LED emitter and a silicon NPN photodarlington transistor detector. The device has a CTR tested at 1mA LED current. This low drive current permits easy interfacing from CMOS to LSTTL or TTL.
通道数 1
针脚数 8
正向电压 1 V
输入电流 1.00 mA
耗散功率 240 mW
隔离电压 4 kV
正向电流 60 mA
输出电压Max 30 V
输入电流Min 60 mA
正向电压Max 1.5 V
正向电流Max 60 mA
工作温度Max 100 ℃
工作温度Min -40 ℃
耗散功率Max 240 mW
安装方式 Surface Mount
引脚数 8
封装 SOIC-8
高度 1.55 mm
封装 SOIC-8
工作温度 -40℃ ~ 100℃
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
