WR11AS

NKK SWITCHES  WR11AS  船型开关, SPST, 15A, 250VAC, 黑色

Environmentally sealed rockers offer added protection from the elecments. Specially designed contacts minimize bounce and can break light welds for improved reliability.

欧时:
Rockers SPST,15A 125V AC WR Body

贸泽:
翘板开关 SPST ON-NONE-OFF SOLDER LUG SEALED

e络盟:
船型开关, SPST, 15A, 250VAC, 黑色

艾睿:

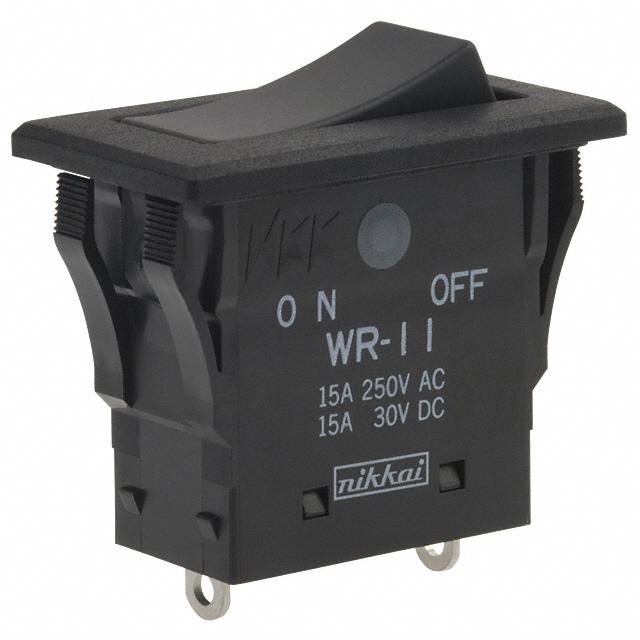

Implementing this WR11AS rocker switch from NKK Switches will give the user complete control. This device has a maximum current rating of 15 A @ 250VAC 30VDC. It has a SPST configuration. This rocker switch panel has an operating temperature range of -25 °C to 85 °C. The WR11AS rocker switch panel has a solder lug termination style. This product is 41 mm long, 43.2 mm tall and 24 mm deep. The maximum AC voltage rating is 250 VAC and the maximum DC voltage rating is 30 VDC.

Allied Electronics:
Switch; Rocker; SPST & SPDT; 15 A @ 125⁄ 250 VAC; 125⁄ 250; On

Chip1Stop:
Switch Rocker ON None OFF SPST Solder Lug Curved Rocker 15A 250VAC 30VDC 30000Cycles

Verical:
Switch Rocker ON None OFF SPST Solder Lug Curved Rocker 15A 250VAC 30VDC 30000Cycles

Newark:
# NKK SWITCHES  WR11AS  Rocker Switch, Non Illuminated, SPST, On-None-Off, Black, Panel, 15 A
