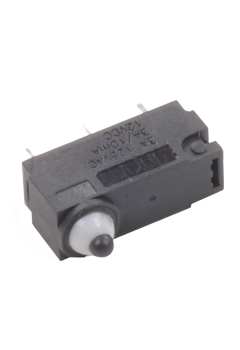

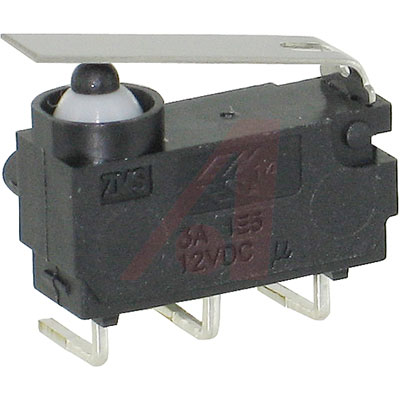

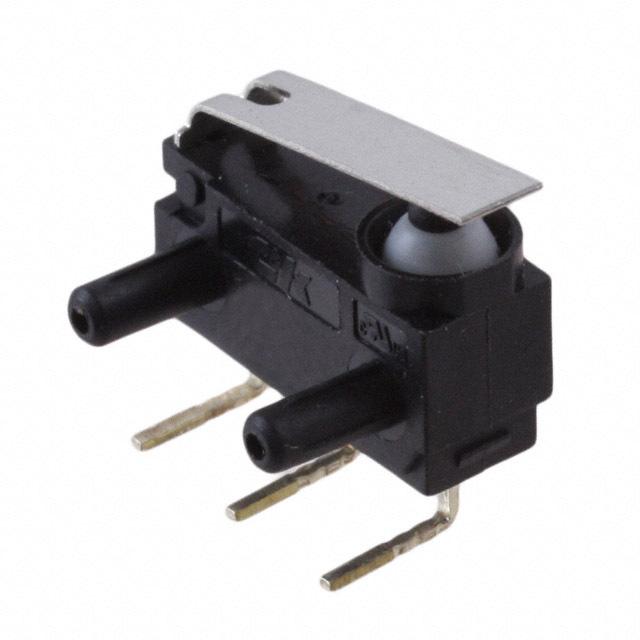

SNAP ACTING/LIMIT SWITCH, SPDT, MOMENTARY, 3A, 12VDC, 5.2mm, THROUGH HOLE-RIGHT ANGLE, ROHS COMPLIANT
A little more than half an inch long and less than a quarter inch wide, this SPDT snap-action switch can be found in test equipment, security systems, communication equipment and consumer electronics. Switch mounting is PC through-hole.
立创商城:
ZMSL03130T10LLC
得捷:
SWITCH SNAP ACTION SPDT 3A 125V
艾睿:
Switch Snap Action N.O./N.C. SPDT Lever 3A 125VAC 12VDC 1.91N Thru-Hole PC Pins Bulk
Allied Electronics:
Switch, Snap, Sealed, 3 Amps, Leaf Actuated, .25mm Long, Left Form PC Terminals
Chip1Stop:
Switch Snap Action N.O./N.C. SPDT Lever PC Pins 3A 125VAC 12VDC 1.91N Thru-Hole
Verical:
Switch Snap Action N.O./N.C. SPDT Lever 3A 125VAC 12VDC 1.91N Thru-Hole PC Pins Bulk
MASTER:
Subminiature Snap-acting Switch IP 65
Online Components:
Subminiature Snap-acting Switch IP 65
Electro Sonic:
Subminiature Snap-acting Switch IP 65
额定电压DC 12 V
额定电压AC 125 V
额定电流 3A AC, 3A DC
触点类型 SPDT
额定电流Max 3A @125VAC, 12VDC
工作温度Max 120 ℃
工作温度Min -40 ℃
额定电压DC Max 12 V
额定电压AC Max 125 V
安装方式 Through Hole
封装 -
高度 10.4 mm
封装 -
触点材质 Fine Silver
工作温度 -40℃ ~ 120℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536507000
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
ZMSL03130T10LLC C&K Components | 当前型号 | 当前型号 |
L03 C&K Components | 功能相似 | ZMSL03130T10LLC和L03的区别 |
