AC-DC Power Supply Single-OUT 9V 2.4A 20W 8Pin
开放框架 AC DC 转换器 1 输出 9V - - - 2.45A 85 ~ 264 VAC，120 ~ 370 VDC 输入
得捷:
AC/DC CONVERTER 9V 20W
贸泽:
Switching Power Supplies 22W 9V 2.45A AC-DC, 115-230VAC
艾睿:

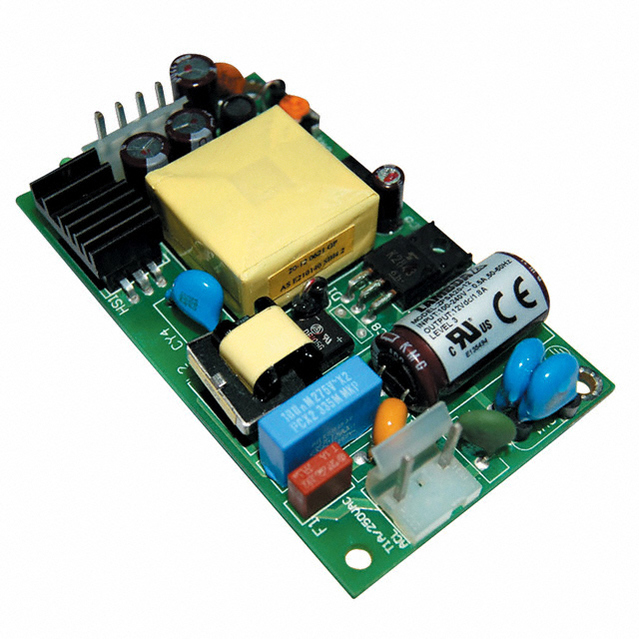

With this ZPSA20-9 AC to DC power supply from TDK-Lambda your electronic device will be able to operate by using direct current instead of alternating current. It has a voltage of 9 V and maximum output power of 20 W. This part&s;s single output can handle a current up to 2.4 A. This part has a temperature range of 0 °C to 70 °C.
Allied Electronics:
Power Supply; AC-DC; 9V@2.45A; 85-264VIn; Open Frame; Panel Mnt; Switching; ZPSA Series
Chip1Stop:
AC/DC Power Supply Single-OUT 9V 2.4A 20W 8-Pin
Verical:
AC/DC Power Supply Single-OUT 9V 2.4A 20W 8-Pin
额定功率 20 W
输出接口数 1
输出电压 9 V
输出电流 2.45 A
输出功率 22 W
隔离电压 3 kV
输入电压DC Max 370 V
输入电压DC Min 120 V
输入电压AC Max 264 V
输入电压AC Min 85 V
输出电流Max 2.45 A
输入电流Min 0.4 A
输出功率Max 20 W
额定功率Max 20 W
工作温度Max 70 ℃
工作温度Min 0 ℃
输入电压 85VAC ~ 264VAC
安装方式 Chassis
引脚数 8
长度 3.5 in
宽度 2 in
高度 17.6 mm
工作温度 0℃ ~ 70℃
产品生命周期 Active
制造应用 ITE（商业）
RoHS标准 RoHS Compliant
含铅标准 Lead Free
