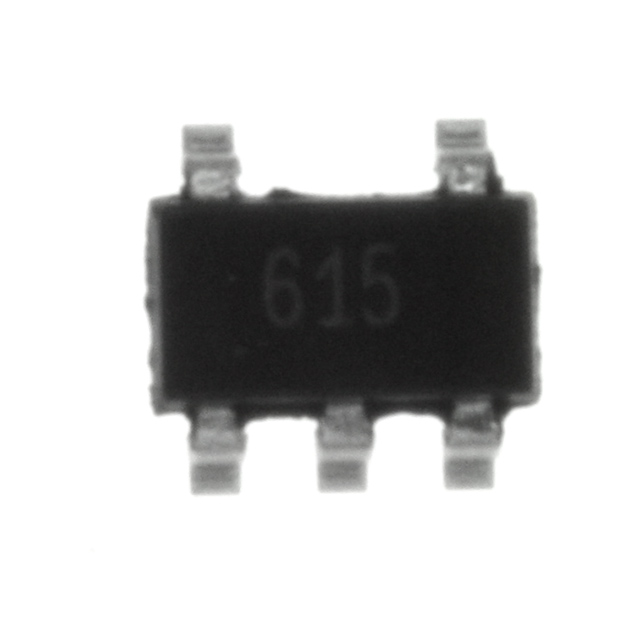

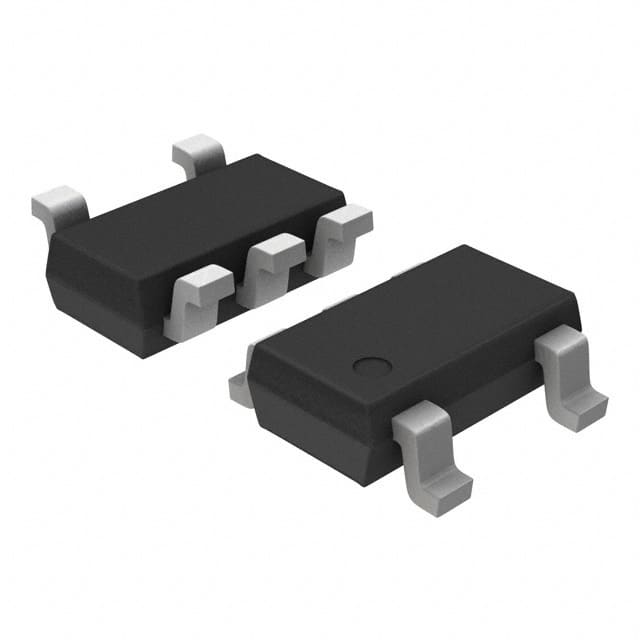

ZXLD1615ET5TA 编带
升压,反激,SEPIC 开关稳压器 IC 正 可调式 2.5V 1 输出 500mA(开关) SOT-23-5 细型,TSOT-23-5
得捷:
IC REG MULTI CONFG ADJ TSOT23-5
立创商城:
升降压型 升压型 Vin=2.5V~5.5V Vout=2.5V~28V 500mA
贸泽:
Voltage Regulators - Switching Regulators Boost Converter for LCD and OLED BIAS
艾睿:
Adjust the voltage level of your devices with this step up ZXLD1615ET5TA DC to DC converter from Diodes Zetex. This converter&s;s single output can produce a current up to 0.25 A. Using the part will provide the power your application needs by requiring a voltage only of 2.5 V and not exceeding a voltage of 5.5 V. With an adjustable output that has a voltage of 2.5 to 28 V, this is power management at its best. This converter is 85typ % efficient. This part offers a switching frequency of 1000Max kHz in order to work properly. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This converter has an operating temperature range of -40 °C to 85 °C.
Allied Electronics:
Adj. DC-DC Boost Converter, Switch TSOT
TME:
PMIC; DC/DC converter, LED driver; Uoper:2.7÷5.5V; Uout:2.5÷28V
Verical:
Conv DC-DC 2.5V to 5.5V Step Up Single-Out 2.5V to 28V 0.25A 5-Pin TSOT-23 T/R
儒卓力:
**LEDDr 28V 0.3A U TSOT23-5 SMD **
DeviceMart:
IC REG BOOST ADJ 0.25A TSOT23-5
Win Source:
Boost, Flyback, SEPIC Switching Regulator IC Positive Adjustable 2.5V 1 Output 500mA Switch SC-74A, SOT-753
输出接口数 1
输出电压 2.5V ~ 28V
输出电流 250 mA
耗散功率 300 mW
输出功率 300 mW
开关频率 1MHz MAX
输入电压Max 5.5 V
输入电压Min 2.5 V
输出电压Max 28 V
输出电压Min 2.5 V
输出电流Max 0.25 A
工作温度Max 85 ℃
工作温度Min 40 ℃
电源电压Min 2.5 V
输入电压 2.5V ~ 5.5V
安装方式 Surface Mount
引脚数 5
封装 TSOT-23-5
封装 TSOT-23-5
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
ECCN代码 EAR99
