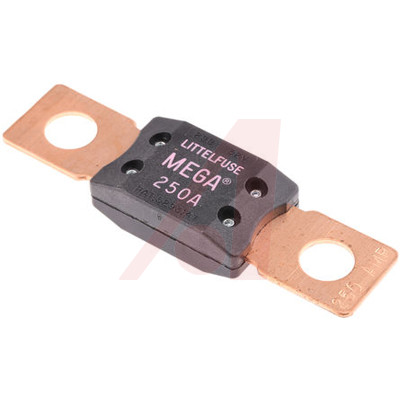

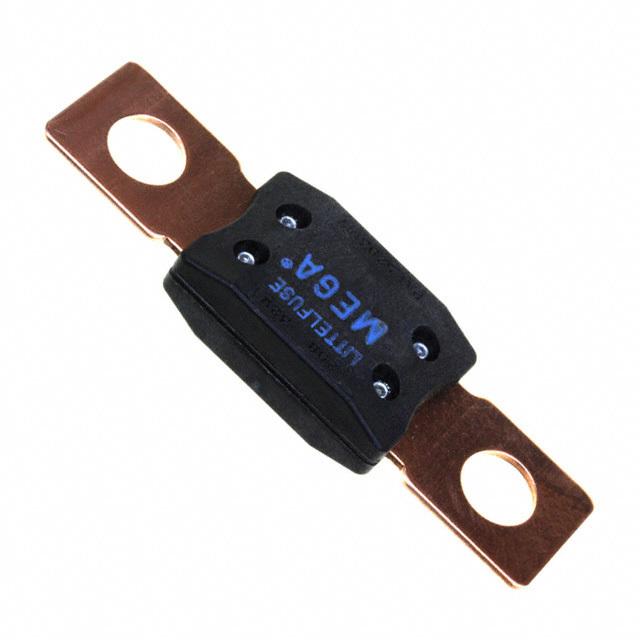

LITTELFUSE 0298250.ZXEH 汽车保险丝, 向下式螺栓, MEGA 298系列, 250 A, 延迟, 32 V, 68.58mm x 16.2mm x 10.67mm
MEGA 熔丝
Littelfuse MEGA 熔丝专为高电流电路保护设计，采用扩散丸技术，并具有延时特性。 MEGA 熔丝特别适用于电池和交流发电机保护应用及其他需要超高电流保护的大规格电缆。
欧时:
Time Delay MEGA Fuse 250A 32V
得捷:
FUSE AUTO 250A 32VDC AUTO LINK
立创商城:
250A 32V
e络盟:
汽车保险丝, 向下式螺栓, 延迟, 250 A, 32 V, 68.58mm x 16.2mm x 10.67mm, MEGA 298系列
艾睿:
Be protected by adding an automotive 0298250.ZXEH fuse developed by Littelfuse. This device has a current rating of 250. This fuse has an operating temperature range of -40 °C to 125 °C. It has 2 terminals. The 0298250.ZXEH fuse has a bolt down termination style. The maximum DC voltage rating is 32 VDC. This product is 68.58 mm long, 10.67 mm tall and 19.05 mm deep.
Allied Electronics:
250A Pink Bolt Down Automotive Blade Fuse; 32 V dc
Chip1Stop:
Fuse Automotive Slow Blow Acting 250A 32V Bolt Bolt Down 68.58 X 19.05 X 10.67mm
Verical:
Fuse Automotive Slow Blow Acting 250A 32V Bolt Bolt Down 68.58 X 19.05 X 10.67mm
Newark:
# LITTELFUSE 0298250.ZXEH Fuse, Automotive, Bolt Down, 250 A, MEGA 298 Series, Time Delay, 32 V, 68.58mm x 16.2mm x 10.67mm
Win Source:
FUSE AUTO 250A 32VDC AUTO LINK
额定电压DC 32 V
额定电流 250 A
电阻 0.144 MΩ
工作温度Max 125 ℃
工作温度Min -40 ℃
额定电压 32 V
额定电压DC Max 32 V
引脚数 2
封装 Auto Link
长度 68.58 mm
宽度 10.67 mm
高度 10.67 mm
封装 Auto Link
颜色 Pink
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Bulk
制造应用 Safety, 安全, 电源管理, Power Management
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/06/16
ECCN代码 EAR99
