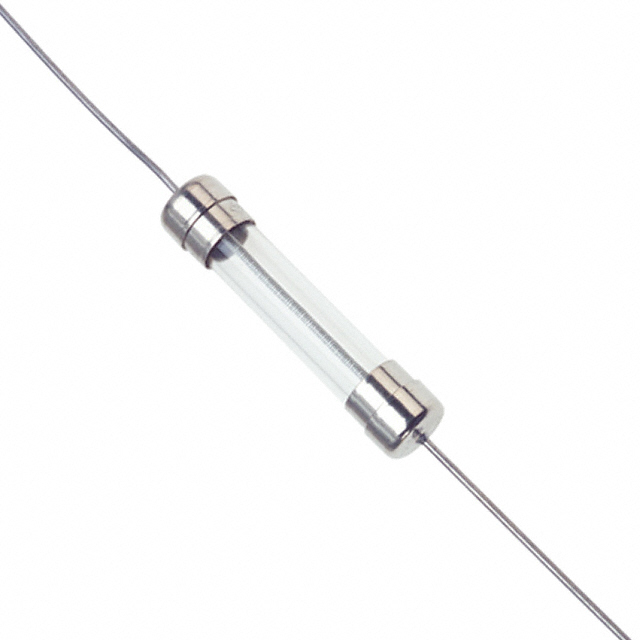

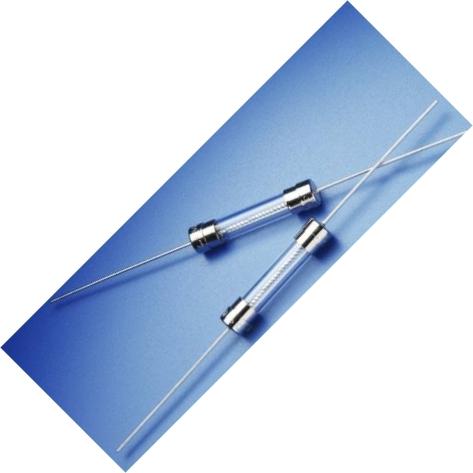

315 系列 慢断 250 V 0.25 A 32.39 x 6.985 mm 轴向引线 玻璃管 保险丝
Be protected by adding a miniature fuse developed by . This device has a current rating of 0.25. This fuse has an operating temperature range of -55 °C to 125 °C. It has 2 terminals. The 0315.250HXP fuse has an axial termination style. This product comes packaged in bulk, so the parts will be stored loosely. This product is 32.39 mm long with a diameter of 6.99 mm. Its fuse is made from glass. The maximum AC voltage rating is 250 VAC.
额定电压DC 250 V
额定电压AC 250 V
额定电流 0.25 A
电阻 4.27 Ω
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 250 V
额定电压AC Max 250 V
安装方式 Through Hole
引脚数 2
封装 3AB, 3AG, 1/4" x 1-1/4" Axial
长度 32.385 mm
直径 6.99 mm
封装 3AB, 3AG, 1/4" x 1-1/4" Axial
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
