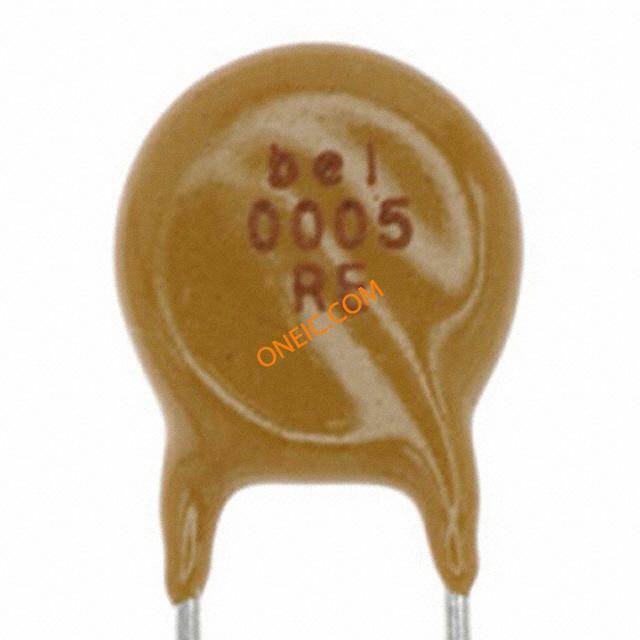

PTC Resettable Fuse 0.05Ahold 0.12Atrip 240VDC/240VAC 1A 0.7W 18.5Ω Radial 8.3 X 3.8mm Bulk

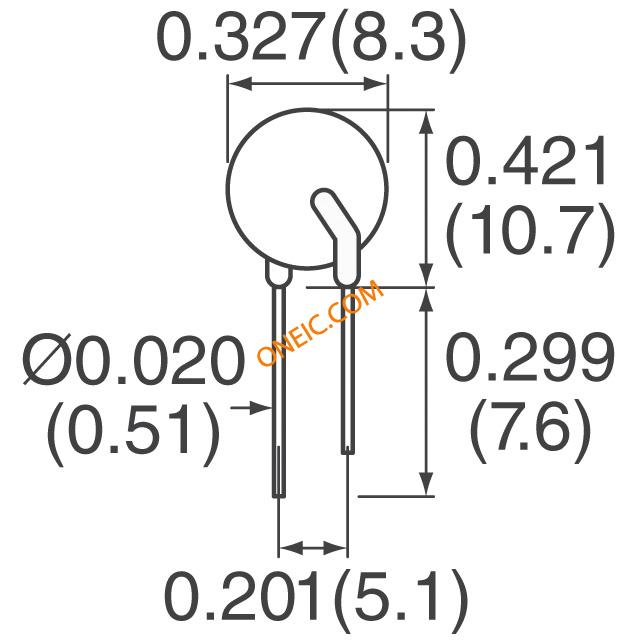

This PTC resettable fuse from Bel Fuse is ideal for low current and low voltage ratings. This device has a maximum current rating of 1. This part has a lead diameter of 0.51 mm. This resettable fuse has an operating temperature range of -40 °C to 85 °C. It has 2 terminals. This product"s terminal pitch is 5.1typ mm. This product is 3.8Max mm deep.
得捷:
PTC RESET FUSE 240V 50MA RADIAL
立创商城:
0ZRE0005FF1C
贸泽:
Resettable Fuses - PPTC Fuse
艾睿:
PTC Resettable Fuse 0.05Ahold 0.12Atrip 240VDC/240VAC 1.5A 0.7W 15s 18.5Ohm Radial 8.3 X 3.8mm Bulk Automotive
安富利:
PTC Resettable Fuse 1A 240VDC/240VAC Bulk
Chip1Stop:
PTC Resettable Fuse 0.05Ahold 0.12Atrip 240VDC/240VAC 1A 0.7W 18.5Ohm Radial 8.3 X 3.8mm Bulk
Verical:
PTC Resettable Fuse 0.05Ahold 0.12Atrip 240VDC/240VAC 1A 0.7W 18.5Ohm Radial 8.3 X 3.8mm Bulk Automotive
跳闸时间 15 s
耗散功率 0.7 W
电阻 65 Ω
保持电流 0.05 A
跳闸电流 0.12 A
额定电流Max 1 A
保持电流Max 50 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
安装方式 Through Hole
引脚数 2
封装 Radial, Disc
长度 8.3 mm
宽度 3.8 mm
高度 8.3 mm
封装 Radial, Disc
厚度 3.8 mm
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
