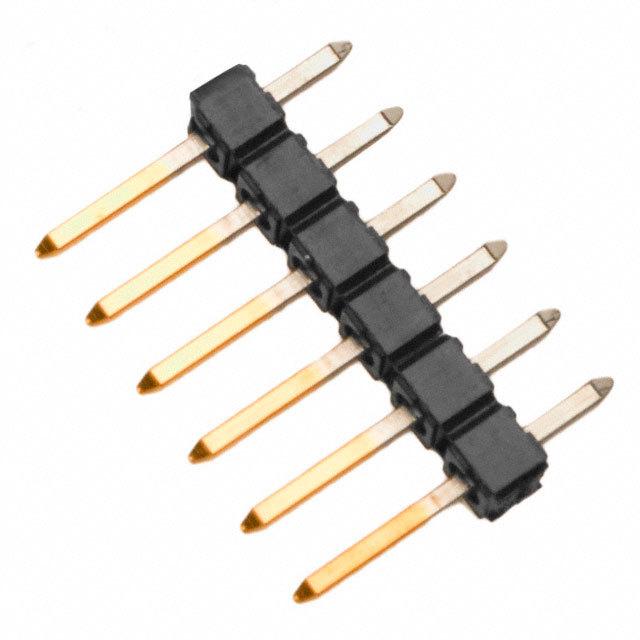

2.54毫米（ .100 ）间距KK®头，分离式，立式， 6电路， 0.38μm （ 15μ ），金（Au ）选择性镀层，配合针脚长度8.13毫米（ 0.320 ） ，与斜塔PC尾巴 2.54mm .100 Pitch KK® Header, Breakaway, Vertical, 6 Circuits, 0.38μm 15μ Gold Au Selective Plating, Mating Pin Length 8.13mm .320, with Kinked PC Tails
针座 通孔 6 位置 0.100"（2.54mm）
得捷:
CONN HEADER VERT 6POS 2.54MM
立创商城:
2.54mm 方针
贸泽:
Molex KK 100 Hdr Assy Bkwy 06 Ckt 15 SGold
艾睿:
Safety is an important concern when designing electronic devices. Molex&s;s unshrouded 0022285064 header connector helps protect your equipment from accidental shortages. This HDR connector&s;s 6 contacts that are made out of brass and plated with gold over nickel. This is a 1-row connector. Its pitch is 2.54 mm. It has a straight body orientation. It has a maximum voltage rating of 250 V. It has a header type gender. This device has a maximum current rating of 4 A/contact. This connector has an operating temperature of -40 to 80 °C. It uses the solder termination method. 0022285064 is housed in black nylon. This product is 15.24 mm long, 10.42 mm tall and 2.49 mm deep.
Verical:
Conn Unshrouded Header HDR 6 POS 2.54mm Solder ST Top Entry Thru-Hole KK® Bag
