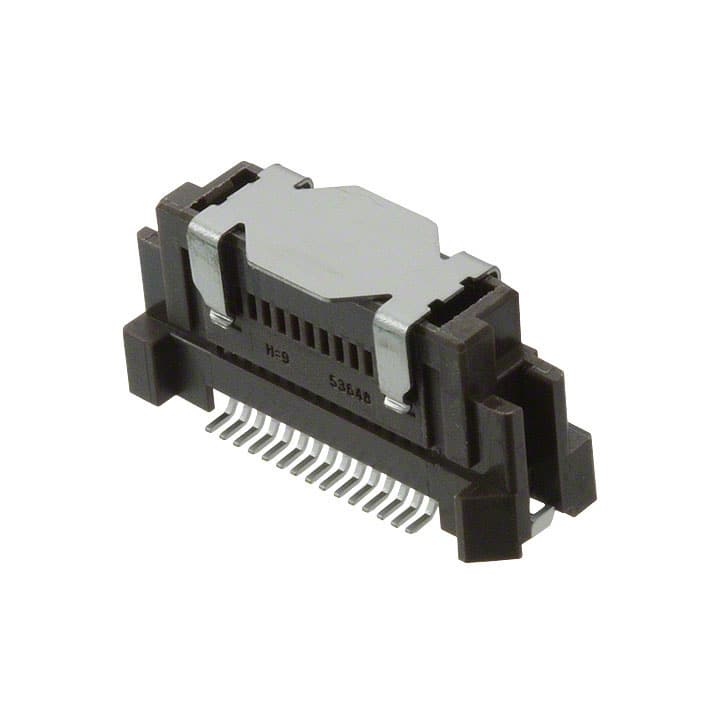

0.635毫米（ 0.025 “ ）间距SlimStack ™插件，表面贴装，双排，垂直叠加， 9.00和15.00毫米（ 0.354和0.591 ” ）堆叠高地，无铅， 30电路， withEmbossed胶带包装封面 0.635mm .025" Pitch SlimStack™ Plug, Surface Mount, Dual Row, Vertical Stacking,9.00 and 15.00mm .354 and .591" Stacking Heights, Lead-free, 30 Circuits, withEmbossed Tape with Cover Packaging
30 Position Connector Plug, Outer Shroud Contacts Surface Mount Gold
得捷:
CONN PLUG 30POS SMD GOLD
立创商城:
0536490374
艾睿:
This board to board 0536490374 header connector from Molex is used for jumper posts to support physical configuration options on printed circuit boards. This HDR connector&s;s 30 contacts that are made out of copper alloy and plated with gold over nickel. Its pitch is 0.64 mm. It has a header type gender. This is a 2-row connector. It has a straight body orientation. It has a maximum voltage rating of 100 V. This device has a maximum current rating of 0.5 A/contact. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This product is 16.4 mm long, 8.5 mm tall and 5.2 mm deep. 0536490374 is housed in natural glass filled polyphenylene sulfide. This connector has an operating temperature of -55 to 85 °C. It uses the solder termination method.
