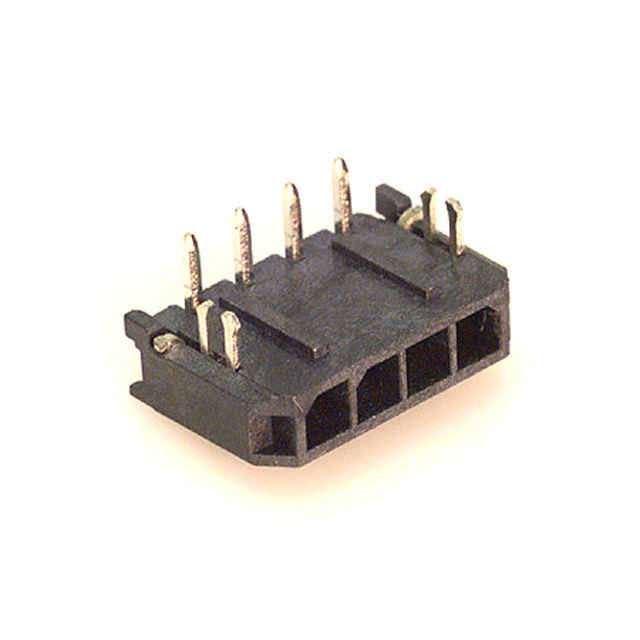

3.00毫米（ 0.118 “ ）间距微飞度3.0 ™接头，表面贴装兼容，单列，直角，带压入金属固定夹， 4个电路 3.00mm .118" Pitch Micro-Fit 3.0™ Header, Surface Mount Compatible, Single Row, Right Angle, with Press-fit Metal Retention Clip, 4 Circuits
针座 通孔，直角 4 位置 0.118"（3.00mm）
得捷:
CONN HEADER R/A 4POS 3MM
艾睿:
Do you need to connect a power supply to a circuit? Then this 0436500403 power connector from Molex is perfect for you! This HDR connector&s;s 4 contacts that are made out of brass alloy and plated with bright tin over nickel. It has a maximum voltage rating of 600 V. It has a right angle body orientation. It has a header type gender. This connector has a single port. Its pitch is 3 mm. 0436500403 is housed in liquid crystal polymer. This device has a maximum current rating of 5 A/contact. The item will be shipped in tray orientation. Its 4 terminals use the solder termination method. This power connector has a minimum operating temperature of -40 °C and a maximum of 105 °C. This product is 15.65 mm long, 5.57 mm tall and 9.9 mm deep.
安富利:
Conn Wire to Board HDR 4 POS 3mm Solder RA Thru-Hole Tray
Chip1Stop:
Conn Wire to Board HDR 4 POS 3mm Solder RA Thru-Hole Tray
Verical:
Conn Power HDR 4 POS 3mm Solder RA Thru-Hole 4 Terminal 1 Port Micro-Fit 3.0™ Tray
