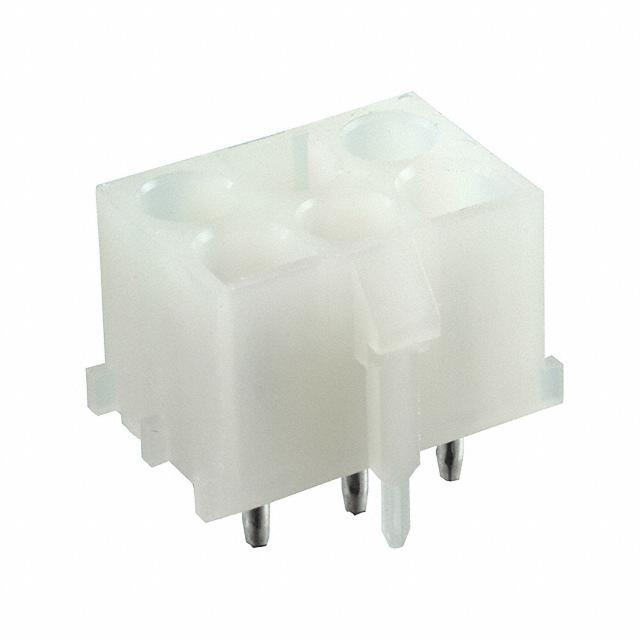

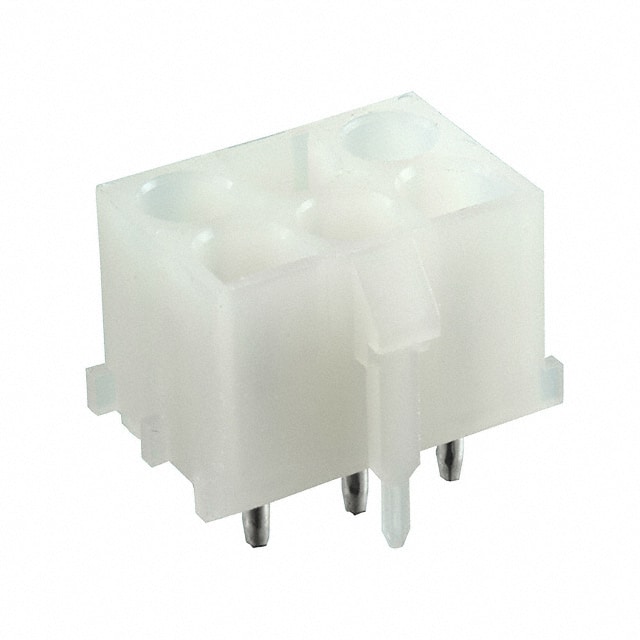

6.35毫米（ .250“ ）间距MLX ™电源连接头，垂直，用塑料偏光PEG， 6电路 6.35mm .250" Pitch MLX™ Power Connector Header, Vertical, with Plastic Polarizing Peg, 6 Circuits
针座 通孔 6 位置 0.250"（6.35mm）
得捷:
6CKT V-2 HDR W/PEG TIN 432550137
艾睿:
There won&s;t be any energy loss when you power up your circuit using the 0432550137 power connector from Molex. This HDR connector&s;s 6 contacts that are made out of phosphor bronze and plated with tin. It has a header type gender. It has a straight body orientation. It has a maximum voltage rating of 600 V. This connector has a single port. Its pitch is 6.35 mm. 0432550137 is housed in nylon. This device has a maximum current rating of 20 A/contact. The component will be shipped in tray format. Its 6 terminals use the solder termination method. This product is 20.32 mm long, 13.97 mm tall and 20.32 mm deep. This power connector has a minimum operating temperature of -55 °C and a maximum of 105 °C.
Chip1Stop:
Conn Power HDR 6 POS 6.35mm Solder ST Thru-Hole 6 Terminal 1 Port Bag
Verical:
Conn Wire to Board HDR 6 POS 6.35mm Solder ST Thru-Hole MLX™ Tray
